Lapping and PolishingKemet 84 Lapping Machine
Part number

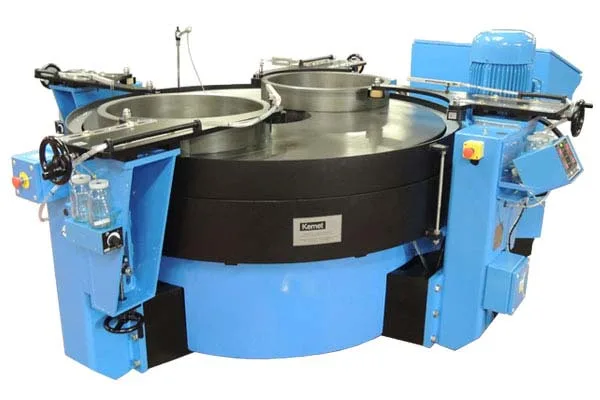

Kemet 84 Lapping Machine
Single-sided flat lapping machines from bench-top 15-inch models up to 120-inch plates, running Kemet composite or cast iron plates with conditioning rings. They produce optically flat surfaces and fine finishes on seals, valve parts and precision components, with metered diamond dispensing as standard.
20 rpmPlate speed
2250 kgMax load per ring
30 kWMain drive motor
1500 mmHeight (open face)
Specifications
| Lapping plate OD | 2134 mm segmented plate |
|---|---|
| Plate speed | 20 rpm |
| Conditioning rings | 4 x 813 mm ID |
| Max load per ring | 2250 kg |
| Main drive motor | 30 kW |
| Height (open face) | 1500 mm |
| Width x depth | 2600 x 2600 mm |
| Weight | approx. 9000 kg open face / 12000 kg pneumatic lift |
| Abrasive tank / waste tank | 117 L / 37 L |
| Electrical supply | 220V/380V/415V 3Ph 50Hz (other voltages on request) |
