Lapping and PolishingKemet 24 Lapping Machine
Part number

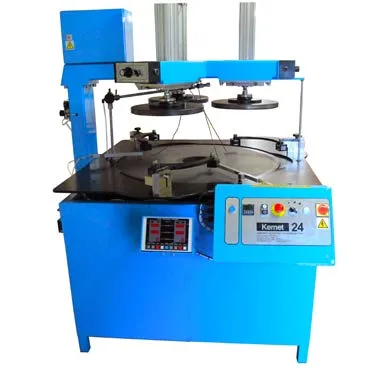

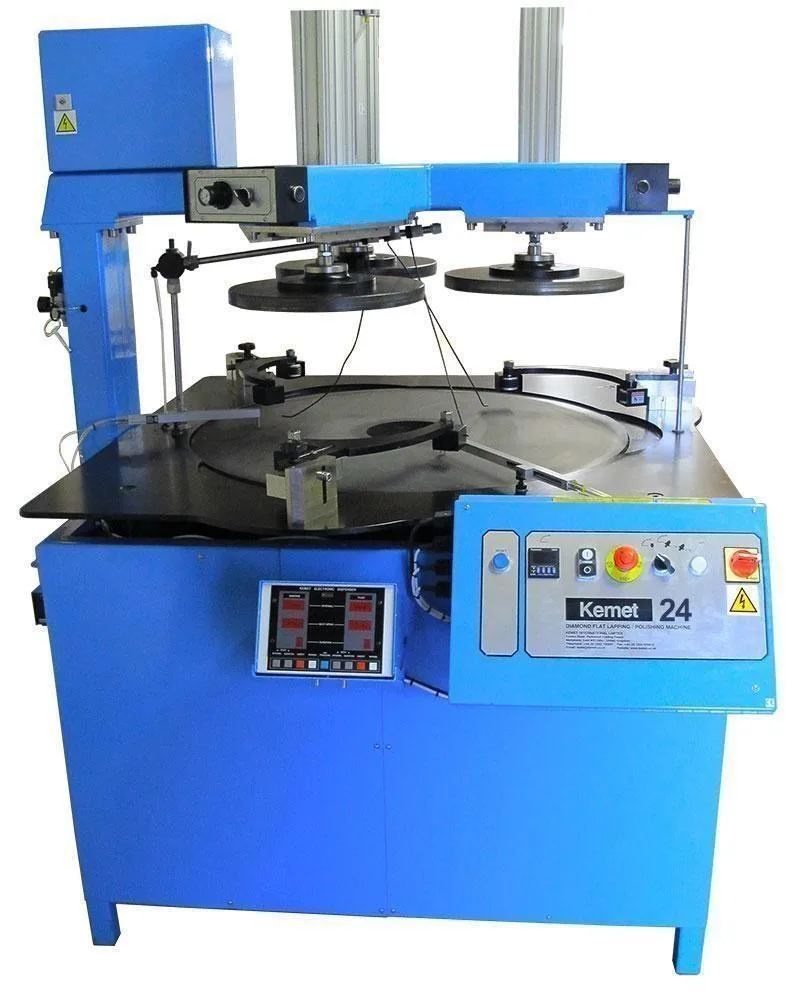

Kemet 24 Lapping Machine
Single-sided flat lapping machines from bench-top 15-inch models up to 120-inch plates, running Kemet composite or cast iron plates with conditioning rings. They produce optically flat surfaces and fine finishes on seals, valve parts and precision components, with metered diamond dispensing as standard.
610 mmLapping plate OD
1150 mmWorking height (pneumatic)
1.5 kWMain drive motor
0.18 kWAbrasive pump motor
Specifications
| Lapping plate OD | 610 mm |
|---|---|
| Plate speed | 58 rpm (variable up to 70 rpm option) |
| Conditioning rings | 3 x 248 mm ID or 4 x 210 mm ID |
| Max load per ring | 250 kg (3 ring) / 200 kg (4 ring) |
| Height | 920 mm open face / 1925 mm pneumatic lift |
| Working height (pneumatic) | 1150 mm |
| Width x depth | 1200 x 1350 mm (open face) / 1240 x 1350 mm (pneumatic) |
| Main drive motor | 1.5 kW |
| Abrasive pump motor | 0.18 kW |
| Weight | approx. 575 kg open face / 700 kg pneumatic lift |
| Air supply | 4 bar min |
| Electrical supply | 220V/380V/415V 3Ph 50Hz (other voltages on request) |
Standards
- ENEN 60204 (electrical system)
