Lapping and PolishingKemet 48 Lapping Machine
Part number

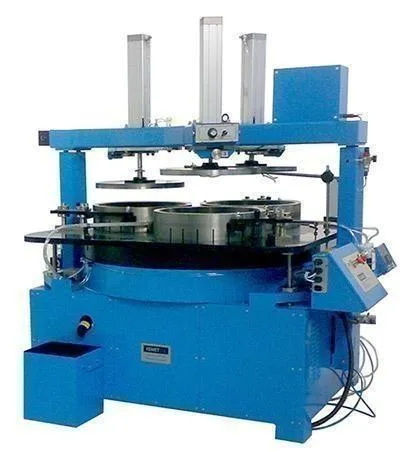

Kemet 48 Lapping Machine
Single-sided flat lapping machines from bench-top 15-inch models up to 120-inch plates, running Kemet composite or cast iron plates with conditioning rings. They produce optically flat surfaces and fine finishes on seals, valve parts and precision components, with metered diamond dispensing as standard.
48 rpmPlate speed
1390 mmWorking height (pneumatic)
7.5 kWMain drive motor
115 L / 37 LAbrasive tank / waste tank
Specifications
| Lapping plate OD | 1219 mm (16 composite-faced cast iron segments |
|---|---|
| Plate speed | 48 rpm |
| Conditioning rings | 3 x 505 mm ID or 4 x 432 mm ID |
| Max load per ring | 375 kg (3 ring) / 325 kg (4 ring) |
| Height | 1010 mm open face / 2350 mm pneumatic lift |
| Working height (pneumatic) | 1390 mm |
| Width x depth | 1510 x 2000 mm (open face) / 1510 x 2520 mm (pneumatic) |
| Main drive motor | 7.5 kW |
| Abrasive tank / waste tank | 115 L / 37 L |
| Weight | approx. 3400 kg open face / 4000 kg pneumatic lift |
| Electrical supply | 220V/380V/415V 3Ph 50Hz (other voltages on request) |
