Lapping and PolishingKemet 15 Lapping Machine
Part number

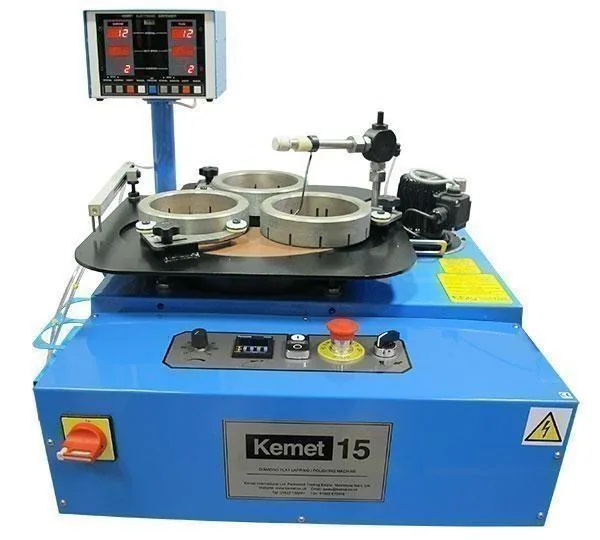

Kemet 15 Lapping Machine
Single-sided flat lapping machines from bench-top 15-inch models up to 120-inch plates, running Kemet composite or cast iron plates with conditioning rings. They produce optically flat surfaces and fine finishes on seals, valve parts and precision components, with metered diamond dispensing as standard.
381 mmLapping plate OD
39 kgMax load per ring
670 mmHeight (open face)
310 mmWorking height
Specifications
| Lapping plate OD | 381 mm |
|---|---|
| Plate speed | 70 rpm (fixed or variable) |
| Conditioning rings | 3 x 140 mm ID |
| Max load per ring | 39 kg |
| Mounting | Bench mounted |
| Height (open face) | 670 mm |
| Working height | 310 mm |
| Width x depth | 760 x 660 mm |
| Main drive motor | 0.37 kW |
| Abrasive pump motor | 0.18 kW |
| Weight | approx. 136 kg |
| Electrical supply | 220V 1Ph 50Hz or 380V/415V 3Ph 50Hz (other voltages on request) |
| Options | Lift-Off Disc system |
Standards
- ENEN 60204 (electrical system)
