Lapping and PolishingKemet 36 Lapping Machine
Part number

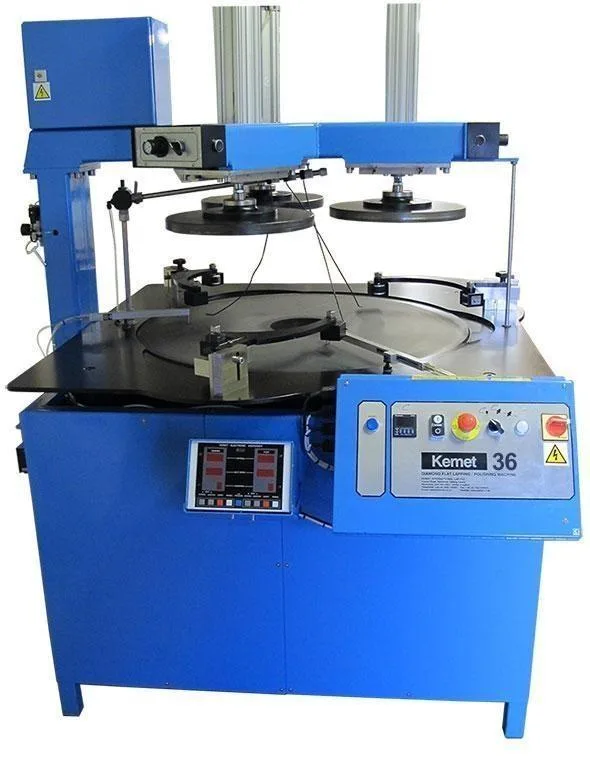

Kemet 36 Lapping Machine
Single-sided flat lapping machines from bench-top 15-inch models up to 120-inch plates, running Kemet composite or cast iron plates with conditioning rings. They produce optically flat surfaces and fine finishes on seals, valve parts and precision components, with metered diamond dispensing as standard.
914 mmLapping plate OD
58 rpmPlate speed
1270 mmWorking height (pneumatic)
0.18 kWAbrasive pump motor
Specifications
| Lapping plate OD | 914 mm |
|---|---|
| Plate speed | 58 rpm |
| Conditioning rings | 3 x 368 mm ID or 4 x 322 mm ID |
| Max load per ring | 350 kg (3 ring) / 300 kg (4 ring) |
| Height | 960 mm open face / 1960 mm pneumatic lift |
| Working height (pneumatic) | 1270 mm |
| Width x depth | 1435 x 1640 mm (open face) / 1505 x 1640 mm (pneumatic) |
| Main drive motor | 4 kW with soft start |
| Abrasive pump motor | 0.18 kW |
| Weight | approx. 1165 kg open face / 1250 kg pneumatic lift |
| Air supply | 4 bar min |
| Electrical supply | 220V/380V/415V 3Ph 50Hz (other voltages on request) |
Standards
- ENEN 60204 (electrical system)
Related items
Kemet Flat Lapping and Polishing MachinesKemet 15 Lapping MachineKemet 15 Lapping Machine
Kemet Flat Lapping and Polishing MachinesKemet 20 Lapping MachineKemet 20 Lapping Machine
Kemet Flat Lapping and Polishing MachinesKemet 24 Lapping MachineKemet 24 Lapping Machine
Kemet Flat Lapping and Polishing MachinesKemet 40 Lapping MachineKemet 40 Lapping Machine
Kemet Flat Lapping and Polishing MachinesKemet 48 Lapping MachineKemet 48 Lapping Machine
Kemet Flat Lapping and Polishing MachinesKemet 56 Lapping MachineKemet 56 Lapping Machine
Kemet Flat Lapping and Polishing MachinesKemet 72 Lapping MachineKemet 72 Lapping Machine

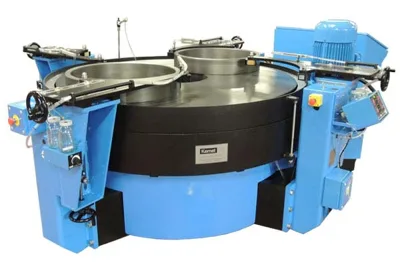

Kemet Flat Lapping and Polishing MachinesKemet 84 Lapping MachineKemet 84 Lapping Machine
