Lapping and PolishingKemet 56 Lapping Machine
Part number

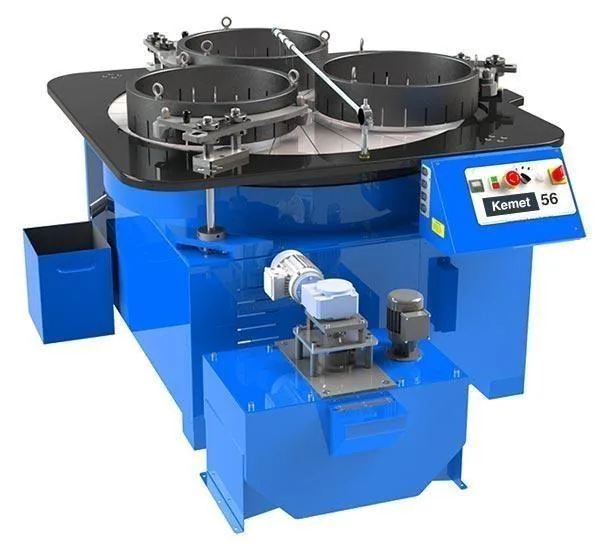

Kemet 56 Lapping Machine
Single-sided flat lapping machines from bench-top 15-inch models up to 120-inch plates, running Kemet composite or cast iron plates with conditioning rings. They produce optically flat surfaces and fine finishes on seals, valve parts and precision components, with metered diamond dispensing as standard.
48 rpmPlate speed
1400 mmWorking height (pneumatic)
11 kWMain drive motor
115 L / 37 LAbrasive tank / waste tank
Specifications
| Lapping plate OD | 1422 mm (24 composite-faced cast iron segments) |
|---|---|
| Plate speed | 48 rpm |
| Conditioning rings | 3 x 578 mm ID or 4 x 530 mm ID |
| Max load per ring | 400 kg (3 ring) / 350 kg (4 ring) |
| Height | 1030 mm open face / 2260 mm pneumatic lift |
| Working height (pneumatic) | 1400 mm |
| Width x depth | 1700 x 2020 mm (open face) / 1700 x 2520 mm (pneumatic) |
| Main drive motor | 11 kW |
| Abrasive tank / waste tank | 115 L / 37 L |
| Weight | approx. 4100 kg open face / 5000 kg pneumatic lift |
| Electrical supply | 220V/380V/415V 3Ph 50Hz (other voltages on request) |
