Lapping and PolishingKemet 20 Lapping Machine
Part number

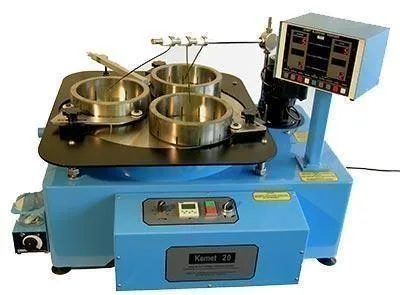

Kemet 20 Lapping Machine
Single-sided flat lapping machines from bench-top 15-inch models up to 120-inch plates, running Kemet composite or cast iron plates with conditioning rings. They produce optically flat surfaces and fine finishes on seals, valve parts and precision components, with metered diamond dispensing as standard.
508 mmLapping plate OD
53 kgMax load per ring
385 mmWorking height
883 x 780 mmWidth x depth
Specifications
| Lapping plate OD | 508 mm |
|---|---|
| Plate speed | 70 rpm (fixed or variable) |
| Conditioning rings | 3 x 191 mm ID |
| Max load per ring | 53 kg |
| Height | 700 mm open face / 965 mm pneumatic lift |
| Working height | 385 mm |
| Width x depth | 883 x 780 mm |
| Main drive motor | 0.75 kW |
| Abrasive pump motor | 0.18 kW |
| Weight | approx. 200 kg open face / 385 kg pneumatic lift |
| Electrical supply | 220V 1Ph 50Hz or 380V/415V 3Ph 50Hz (other voltages on request) |
| Options | Pneumatic lift |
Standards
- ENEN 60204 (electrical system)
