Lapping and PolishingKemet 72 Lapping Machine
Part number

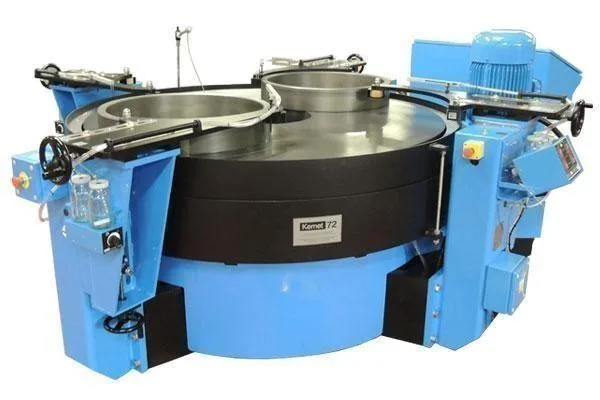

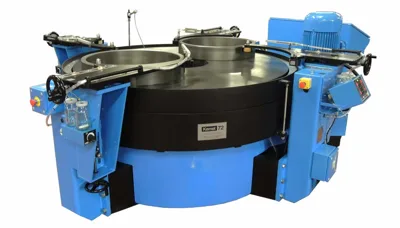

Kemet 72 Lapping Machine
Single-sided flat lapping machines from bench-top 15-inch models up to 120-inch plates, running Kemet composite or cast iron plates with conditioning rings. They produce optically flat surfaces and fine finishes on seals, valve parts and precision components, with metered diamond dispensing as standard.
2000 kgMax load per ring
15 kWMain drive motor
117 L / 37 LAbrasive tank / waste tank
Side motorDrive
Specifications
| Lapping plate OD | 1829 mm segmented plate |
|---|---|
| Plate speed | 30 rpm open face / 36 rpm pneumatic lift |
| Conditioning rings | 4 x 692 mm ID |
| Max load per ring | 2000 kg |
| Main drive motor | 15 kW |
| Height | 1350 mm open face / 2764 mm pneumatic lift |
| Width x depth | 3026 x 3073 mm |
| Weight | approx. 6000 kg open face / 10000 kg pneumatic lift |
| Abrasive tank / waste tank | 117 L / 37 L |
| Drive | Side motor, multiple V-belts, reduction gearbox, electronic soft start |
| Electrical supply | 220V/380V/415V 3Ph 50Hz (other voltages on request) |
