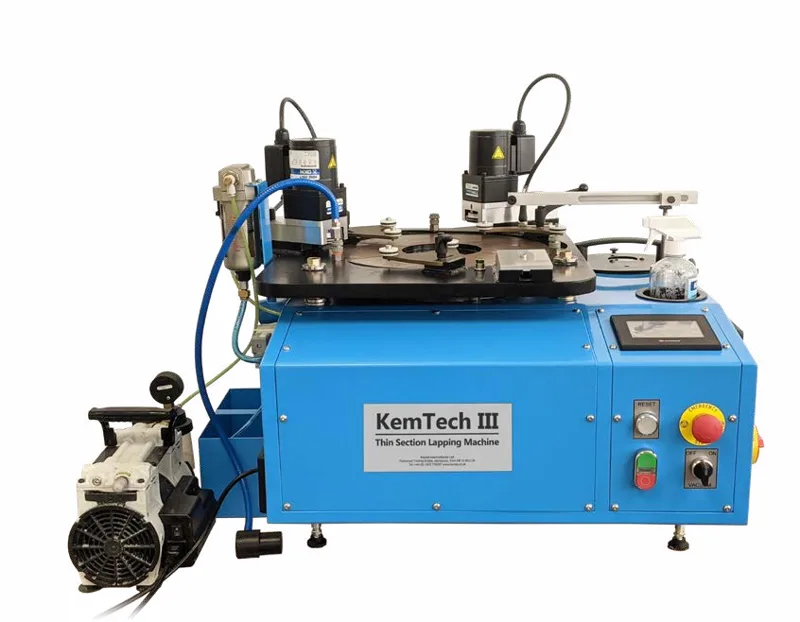

Lapping and PolishingKemTech III Thin Section Lapping Machine, 110V
Part number
359842A
A lapping and polishing machine for thin sections mounted on glass slides, taking them down to 20 microns. Metered abrasive dosing and the Lift-Off Disc system give quick changes between lapping and polishing.
2 standardDriven rings
Specifications
| Application | Thin sections on glass slides down to 20 µm |
|---|---|
| Driven rings | 2 standard, 3rd optional |
| Vacuum jig capacity | up to 3 (jigs optional) |
| Speed | variable up to 70 rpm |
| Control | 4.3 in HMI touchscreen |
| Dosing | Integrated peristaltic dispenser with stirred abrasive tank |
| Plates | Aluminium Lift-Off Disc for polishing |
| Vacuum | Stand-alone vacuum pump with water trap and filter |
| Electrical supply | 110V 1Ph 50/60Hz |
Standards
