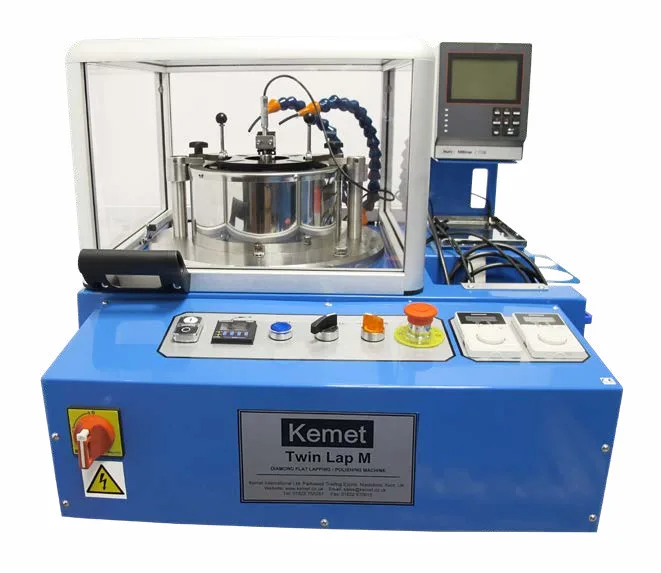

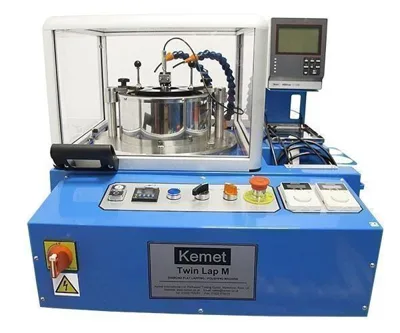

Lapping and PolishingKemet Twin Lap M Dual Face Lapping Machine
Part number
359314
Double-sided lapping machines that lap both faces of a part at once for tight thickness and parallelism control. The bench-top Twin Lap M suits small workshops and laboratories; the floor-standing Twin Lap L takes larger parts.
5 kgMax plate force
0-111 rpmOuter ring gear
0-125 rpmInner sun gear
Cast ironLap plate
Specifications
| Capacity | parts up to 51 mm OD, 20 mm thick |
|---|---|
| Max plate force | 5 kg |
| Outer ring gear | 0-111 rpm, 60 W DC drive |
| Inner sun gear | 0-125 rpm, 60 W DC drive |
| Lap plate | Cast iron, 175 mm dia |
| Dimensions (H x D x W) | 630 x 780 x 770 mm |
| Weight | approx. 80 kg |
| Electrical supply | 230V 1Ph 50Hz or 110V 1Ph 60Hz |
| Tolerance | Thickness +/- 0.005 mm |
| Standard tooling | Cast iron lap plate, cast iron conditioning gears, top plate weights, work carriers |
| Optional | Electronic thickness control |
