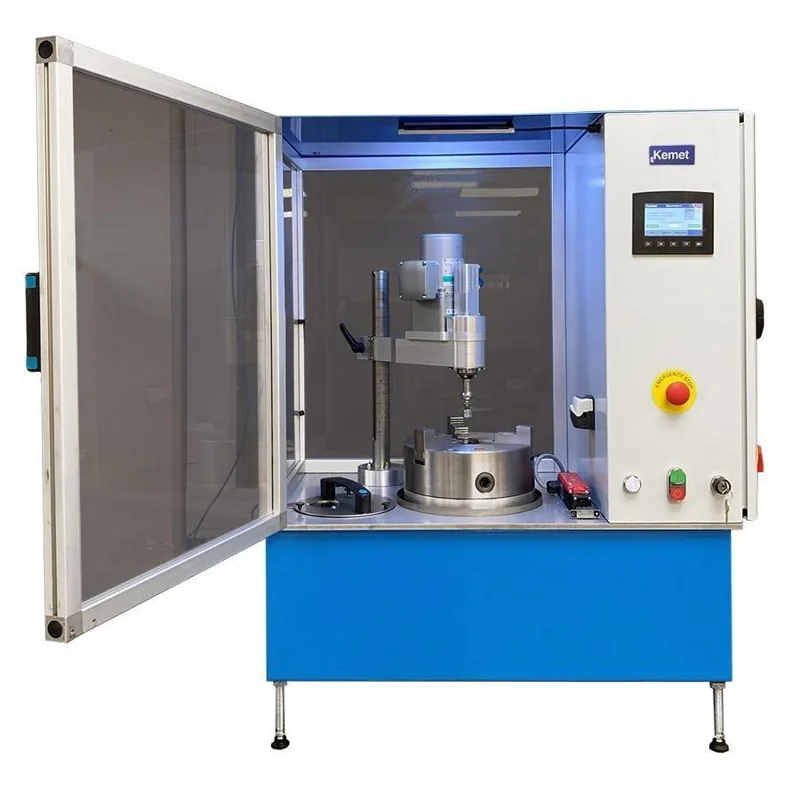

Lapping and PolishingKemTech SpheriMatch II Match Lapping Machine
Part number
359007
An automated machine that match-laps two mating parts, such as a piston pump barrel and its swash plate, so their curved or flat faces seal perfectly. It removes deep scoring and finishes the pair to a matching radius.
up to 70 rpmRotation speed
Specifications
| Chuck | 300 mm three-jaw, variable speed |
|---|---|
| Rotation speed | up to 70 rpm |
| Sweep arm | Servo controlled, programmable start/finish |
| Part size | 75-300 mm diameter, up to 280 mm tall |
| Control | 4.3 in Unitronics HMI and PLC |
| Abrasive feed | WM FD114 peristaltic pump with abrasive stirrer |
| Head | Motorised driven head |
| Dimensions (H x W x D) | 1022 x 862 x 550 mm |
