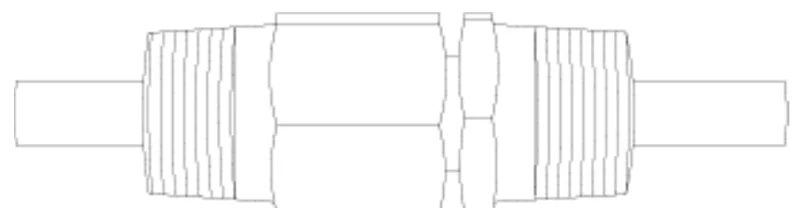

Machinery Protection and VibrationLow Pressure Cable Seal 43501, 1/2-14 NPT x 1/2-14 NPT, 4-Cable Grommet
Part number
43501-01-04-01
Installation accessories for 3300 and 3300 XL proximity transducers, such as cable seals, brackets and junction boxes. The low pressure cable seal passes transducer cables through a machine case while keeping lube oil inside.
1/2-14 NPTHigh-pressure side thread
1/2-14 NPTLow-pressure side thread
Specifications
| Product | 43501 low pressure cable seal |
|---|---|
| High-pressure side thread | 1/2-14 NPT |
| Low-pressure side thread | 1/2-14 NPT |
| Grommet | Grommet for up to 4 cables (one hole punched, three pre-drilled) |
| Grommet material | Molded silicone rubber |
| Pressure rating | 345 kPa (50 psi) across grommet |
| Cables | 1 to 4 standard 3300-series transducer cables or 1 to 2 25 mm / 50 mm DE cables |

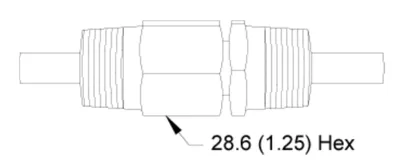

| Hex size | 28.6 mm (1.25 in) |
| Use | Seals lube oil at the cable exit from bearing housings and machine cases |
| Sealing note | Rated on cable outer jacket and seal body only |
Standards
