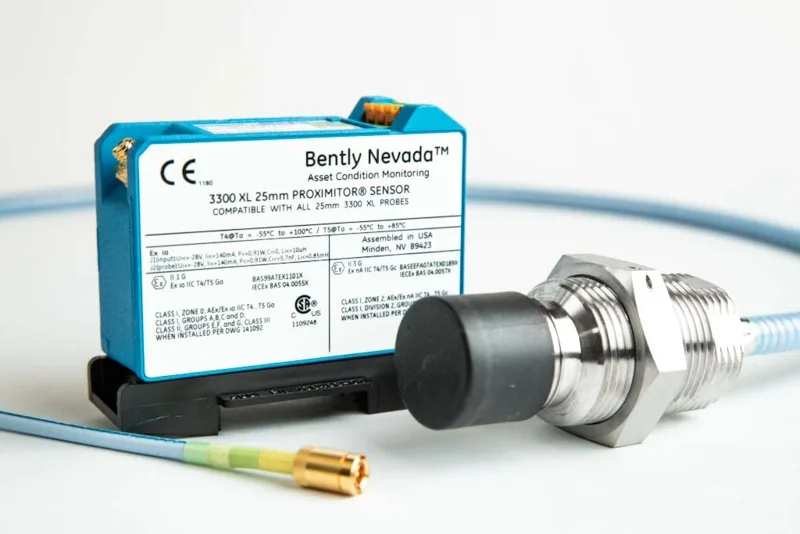

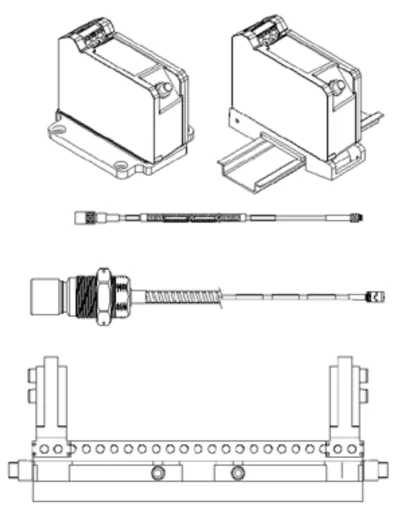

Machinery Protection and Vibration3300 XL 25 mm Proximitor Sensor, 5 m System, DIN-rail mount, Ex Certified
Part number
330850-51-05
Long-range proximity system with a 25 mm probe and a 12.7 mm linear range at 0.787 V/mm. It measures differential expansion on mid-size to large steam turbines and replaces 7200 25/35 mm systems.
5 mSystem length
50 ohmOutput resistance
Specifications
| Product | 3300 XL 25 mm Proximitor sensor |
|---|---|
| System length | 5 m |
| Mounting | DIN-rail mount |
| Hazardous-area certification | Multiple approvals (hazardous area) |
| Power | -17.5 to -26 Vdc (-23 to -26 Vdc with barriers), 12 mA max |
| Output resistance | 50 ohm |
| Sensitivity (system) | 0.787 V/mm (20 mV/mil) nominal |
| Linear range | 12.7 mm (500 mils), 0.63 to 13.33 mm from target |
| Frequency response | 0 to 2.7 kHz (+0, -3 dB) |
| Target material | AISI 4140 steel (factory default) |
| Housing material | A380 aluminum |
| Operating temperature | -51 to +100 C (-60 to +212 F) |
| Field wiring | 0.2 to 1.5 mm2 (16 to 24 AWG), up to 305 m |
| Terminals | SpringLoc terminal strip |
Standards
- EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- RoHSRoHS Directive 2011/65/EU
- Hazardous-areaHazardous-area certification per Bently Nevada Approvals Quick Reference Guide 108M1756 (option 05)
Datasheet
3300 XL 25 mm Proximity Transducer System DatasheetDoc. 163236 Rev. M · PDF · manufacturer documentRelated items
