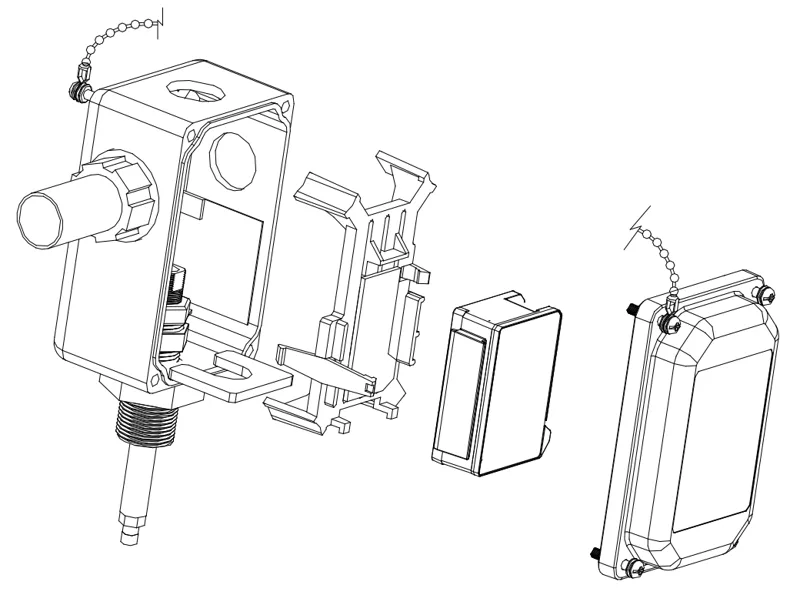

Machinery Protection and VibrationPROXPAC XL Proximity Transducer Assembly, 3300 XL 8 mm Probe, Ex Certified
Part number
330880-28-20-025-02-02
Self-contained probe housing with a 3300 XL 8 mm probe and its Proximitor sensor built into the cover, so no extension cable is needed. The reinforced PPS housing is rated Type 4X / IP66 and lets the probe be adjusted from outside the machine.
3/4-14 NPTMounting thread
3300 XLBuilt-in Proximitor sensor
Specifications
| Product | PROXPAC XL proximity transducer assembly (English) |
|---|---|
| Probe and approvals | 3300 XL 8 mm probe with multiple approvals |
| Standoff adapter (B dimension) | 2.0 in (51 mm) |
| Probe penetration (C dimension) | 2.5 in (64 mm) |
| Conduit fittings | Two 3/4-14 NPT fittings, one plug |
| Mounting thread | 3/4-14 NPT |
| Built-in Proximitor sensor | 3300 XL, 1 m system (no extension cable) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear range | 2 mm (80 mils) |
| Recommended gap | 1.27 mm (50 mils) |
| Power | -17.5 to -26 Vdc (-23 to -26 Vdc with barriers), 12 mA max |
| Housing | Glass and conductive-fibre reinforced PPS thermoplastic, Type 4X / IP66 |
| Housing operating temperature | -52 to +100 C (-62 to +212 F) |
| Probe temperature | -52 to +177 C |
| Weight | 1.44 kg typical (0.3 m sleeve) |
Standards
- EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- RoHSRoHS Directive 2011/65/EU
- HousingHousing Type 4X / IP66
- Hazardous-areaHazardous-area certification per Bently Nevada Approvals Quick Reference Guide 108M1756 (option 28)
Datasheet
PROXPAC XL Proximity Transducer Assembly DatasheetDoc. 178554 Rev. E · PDF · manufacturer documentRelated items
