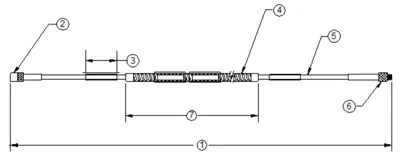

Machinery Protection and Vibration3300 XL 50 mm Extension Cable, 8.0 m, Armored FluidLoc cable
Part number
330877-080-37-00

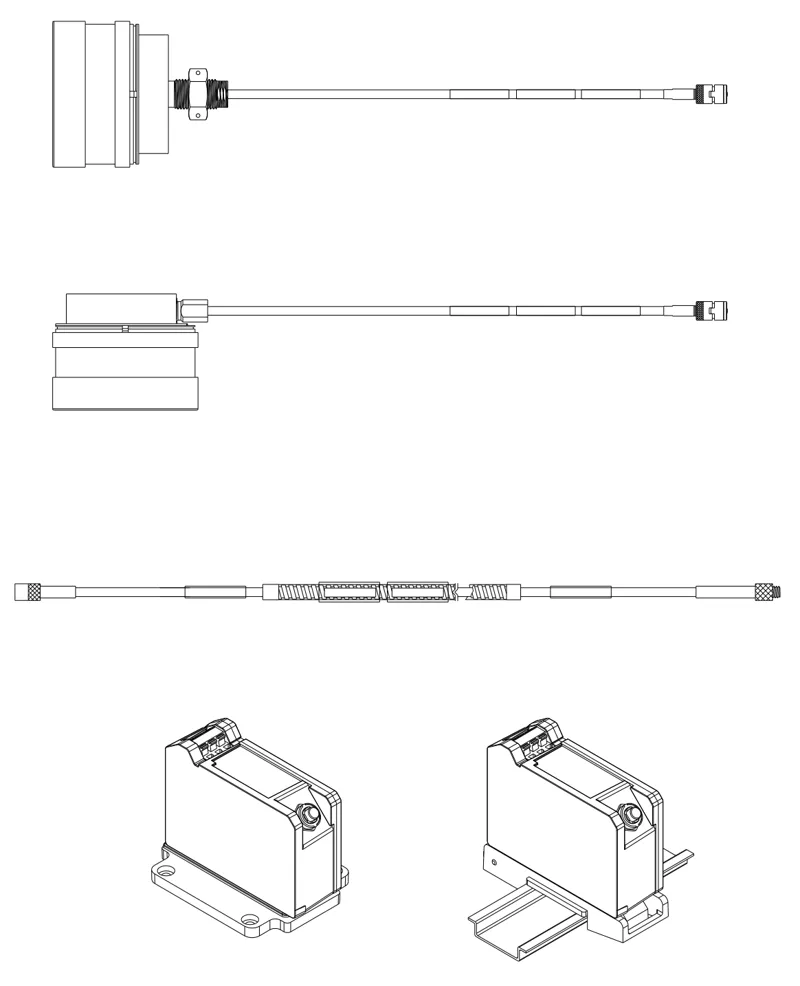

Extra-long-range proximity system with a 50 mm probe and a 27.9 mm linear range at 0.394 V/mm. It measures differential expansion on large steam turbines and replaces 7200 50 mm systems.
Not includedHazardous-area certification
Specifications
| Product | 3300 XL 50 mm extension cable |
|---|---|
| Cable length | 8.0 m (26.2 ft) |
| Cable option | Armored FluidLoc cable |
| Hazardous-area certification | Not included |
| Cable | 75 ohm triaxial, PFA insulated FluidLoc |
| Armor (option 37) | Stainless steel with PFA jacket |
| armor length | cable length - 300 mm |
| Cable temperature | up to +200 C (+392 F) |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Sizing rule | probe length + extension length = Proximitor system length (5 m or 9 m) |
| Sensitivity (system) | 0.394 V/mm (10 mV/mil) nominal |
| Linear range | 27.9 mm (1100 mils), 1.3 to 29.2 mm from target |
Standards
- EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- RoHSRoHS Directive 2011/65/EU
Datasheet
3300 XL 50 mm Proximity Transducer System DatasheetDoc. 174014 Rev. L · PDF · manufacturer documentRelated items
