330850-90-00 — 3300 XL 25 mm Proximitor Sensor, 9 m System, Panel mount

Long-range proximity system with a 25 mm probe and a 12.7 mm linear range at 0.787 V/mm. It measures differential expansion on mid-size to large steam turbines and replaces 7200 25/35 mm systems.

9 mSystem length

panel mountMounting

Not includedHazardous-area certification

50 ohmOutput resistance

Specifications

Product	3300 XL 25 mm Proximitor sensor
System length	9 m

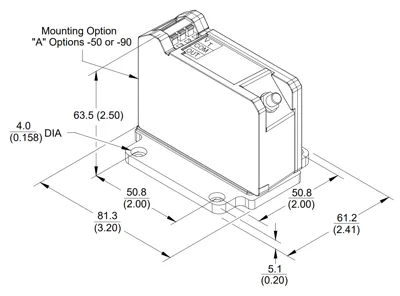

Mounting	panel mount
Hazardous-area certification	Not included
Power	-17.5 to -26 Vdc (-23 to -26 Vdc with barriers), 12 mA max
Output resistance	50 ohm
Sensitivity (system)	0.787 V/mm (20 mV/mil) nominal
Linear range	12.7 mm (500 mils), 0.63 to 13.33 mm from target
Frequency response	0 to 2.7 kHz (+0, -3 dB)
Target material	AISI 4140 steel (factory default)
Housing material	A380 aluminum
Operating temperature	-51 to +100 C (-60 to +212 F)
Field wiring	0.2 to 1.5 mm2 (16 to 24 AWG), up to 305 m
Terminals	SpringLoc terminal strip

Standards

EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
RoHSRoHS Directive 2011/65/EU

Datasheet

3300 XL 25 mm Proximity Transducer System DatasheetDoc. 163236 Rev. M · PDF · manufacturer document
