Machinery Protection and Vibration3300 XL 50 mm Proximitor Sensor, 9 m System, Panel mount
Part number
330878-90-00
Extra-long-range proximity system with a 50 mm probe and a 27.9 mm linear range at 0.394 V/mm. It measures differential expansion on large steam turbines and replaces 7200 50 mm systems.
9 mSystem length

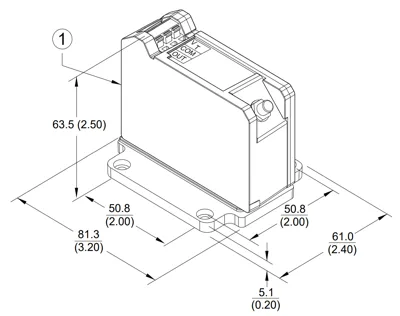

panel mountMounting
Not includedHazardous-area certification
50 ohmOutput resistance
Specifications
| Product | 3300 XL 50 mm Proximitor sensor |
|---|---|
| System length | 9 m |
| Mounting | panel mount |
| Hazardous-area certification | Not included |
| Power | -17.5 to -26 Vdc (-23 to -26 Vdc with barriers), 12 mA max |
| Output resistance | 50 ohm |
| Sensitivity (system) | 0.394 V/mm (10 mV/mil) nominal |
| Linear range | 27.9 mm (1100 mils), 1.3 to 29.2 mm from target |
| Target material | AISI 4140 steel (factory default) |
| Housing material | A380 aluminum |
| Operating temperature | -51 to +100 C (-60 to +212 F) |
| Field wiring | 0.2 to 1.5 mm2 (16 to 24 AWG), up to 305 m |
| Terminals | SpringLoc terminal strip |
Standards
- EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- RoHSRoHS Directive 2011/65/EU
Datasheet
3300 XL 50 mm Proximity Transducer System DatasheetDoc. 174014 Rev. L · PDF · manufacturer documentRelated items
