Machinery Protection and Vibration3300 XL 11 mm Proximity Probe, M16 x 1.5, Unarmored, Case 50 mm, 1.0 m, Ex Certified
Part number
330709-000-050-10-02-05
Proximity system with a larger 11 mm probe tip and a 4 mm linear range at 3.94 V/mm. It suits thrust position, ramp differential expansion and rod drop measurements where the 8 mm range is too short.
M16 x 1.5Case thread
0 mmUnthreaded length
50 mmCase length
Specifications

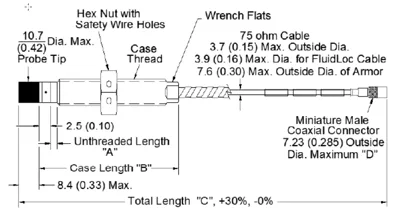

| Probe type | 3300 XL 11 mm proximity probe |
|---|---|
| Probe tip diameter | 10.7 mm (0.42 in) max |
| Case thread | M16 x 1.5 |
| Mounting | Forward (standard) mount |
| Armor | None |
| Unthreaded length | 0 mm |
| Case length | 50 mm |
| Total length | 1.0 m (3.3 ft) |
| Connector and cable | Miniature coaxial ClickLoc connector, standard cable |
| Hazardous-area certification | Multiple approvals (hazardous area) |
| Tip material | Polyphenylene sulfide (PPS) |
| Case material | AISI 304 stainless steel |
| Probe cable | 75 ohm triaxial, FEP insulated |
| Probe temperature | -52 to +177 C (-62 to +351 F) |
| Sensitivity (system) | 3.94 V/mm (100 mV/mil) |
| Linear range | 4.0 mm (160 mils), 0.5 to 4.5 mm from target |
| Recommended gap | 2.5 mm (100 mils) |
| Frequency response | 0 to 8 kHz (+0, -3 dB) |
Standards
- EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- RoHSRoHS Directive 2011/65/EU
- Hazardous-areaHazardous-area certification per Bently Nevada Approvals Quick Reference Guide 108M1756 (option 05)
Datasheet
3300 XL 11 mm Proximity Transducer System DatasheetDoc. 146256 Rev. T · PDF · manufacturer documentRelated items
