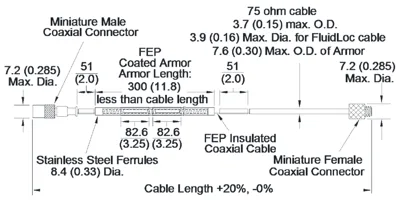

Machinery Protection and Vibration3300 XL 11 mm Extension Cable, 8.0 m, Armored cable with connector protector, Ex Certified
Part number
330730-080-03-05
Proximity system with a larger 11 mm probe tip and a 4 mm linear range at 3.94 V/mm. It suits thrust position, ramp differential expansion and rod drop measurements where the 8 mm range is too short.
Specifications
| Product | 3300 XL 11 mm extension cable |
|---|---|
| Cable length | 8.0 m (26.2 ft) |
| Cable option | Armored cable with connector protector |
| Hazardous-area certification | Multiple approvals (hazardous area) |
| Cable | 75 ohm triaxial, FEP insulated |
| Armor (when selected) | Flexible AISI 302 stainless steel with FEP outer jacket |
| Connectors | Gold-plated ClickLoc |
| Cable temperature | -52 to +177 C (-62 to +351 F) |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Sizing rule | probe length + extension length = Proximitor system length (5 m or 9 m) |
| Sensitivity (system) | 3.94 V/mm (100 mV/mil) |
| Linear range | 4.0 mm (160 mils), 0.5 to 4.5 mm from target |
| Recommended gap | 2.5 mm (100 mils) |
| Frequency response | 0 to 8 kHz (+0, -3 dB) |
Standards
- EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- RoHSRoHS Directive 2011/65/EU
- Hazardous-areaHazardous-area certification per Bently Nevada Approvals Quick Reference Guide 108M1756 (option 05)
Datasheet
3300 XL 11 mm Proximity Transducer System DatasheetDoc. 146256 Rev. T · PDF · manufacturer documentRelated items

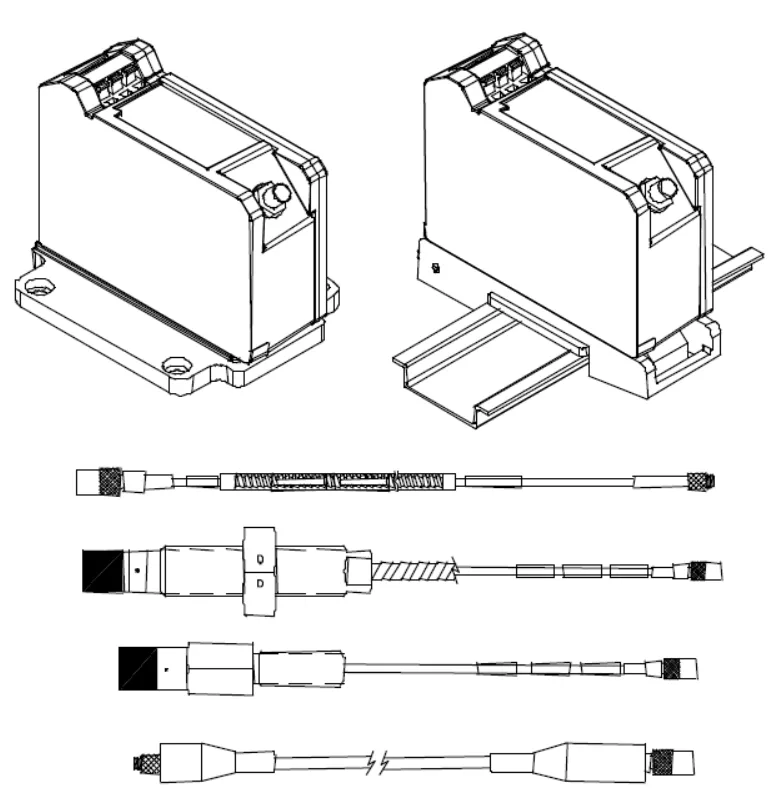

3300 XL 11 mm Proximity Transducer System330709-000-050-10-02-053300 XL 11 mm Proximity Probe, M16 x 1.5, Unarmored, Case 50 mm, 1.0 m, Ex Certified
3300 XL 11 mm Proximity Transducer System330780-91-053300 XL 11 mm Proximitor Sensor, 9 m System, DIN-rail mount, Ex Certified

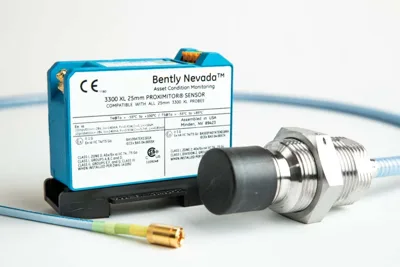

3300 XL 25 mm Proximity Transducer System330850-51-053300 XL 25 mm Proximitor Sensor, 5 m System, DIN-rail mount, Ex Certified
3300 XL 25 mm Proximity Transducer System330850-90-003300 XL 25 mm Proximitor Sensor, 9 m System, Panel mount

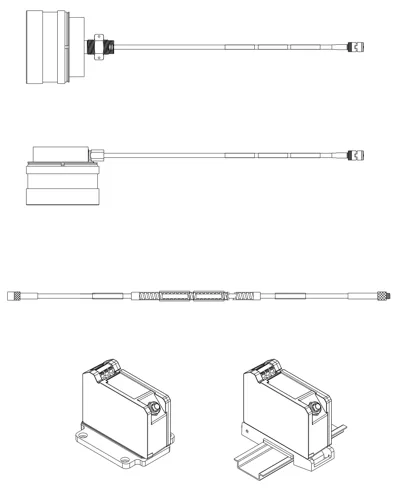

3300 XL 50 mm Proximity Transducer System330877-080-37-003300 XL 50 mm Extension Cable, 8.0 m, Armored FluidLoc cable
3300 XL 50 mm Proximity Transducer System330878-90-003300 XL 50 mm Proximitor Sensor, 9 m System, Panel mount

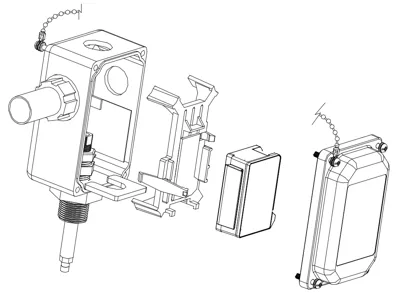

PROXPAC XL Proximity Transducer Assembly330880-28-20-025-02-02PROXPAC XL Proximity Transducer Assembly, 3300 XL 8 mm Probe, Ex Certified

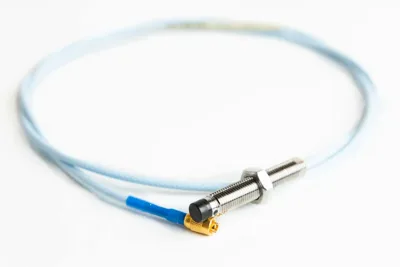

3300 XL 8 mm Proximity Transducer System330101-00-08-10-11-053300 XL 8 mm Proximity Probe, 3/8-24 UNF, Unarmored, Case 0.8 in, 1.0 m, FluidLoc, with Connector Protector, Ex Certified
