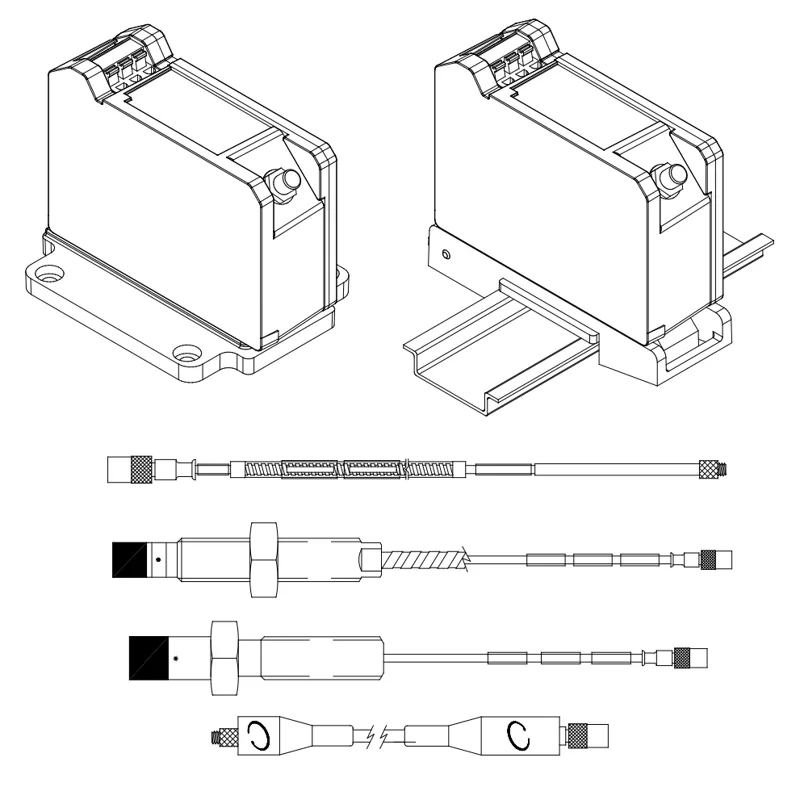

Machinery Protection and Vibration3300 XL NSv Proximitor Sensor, 5 m System, DIN-rail mount, Ex Certified
Part number
330980-51-05
Narrow side-view proximity system for tight mounting spaces and small shafts, such as on centrifugal compressors. It measures radial vibration, axial position and speed with a 7.87 V/mm output over a 1.5 mm linear range.
5 mSystem length
50 ohmOutput resistance
255 g (9 oz)Weight
Specifications
| Product | 3300 XL NSv Proximitor sensor |
|---|---|
| System length | 5 m |

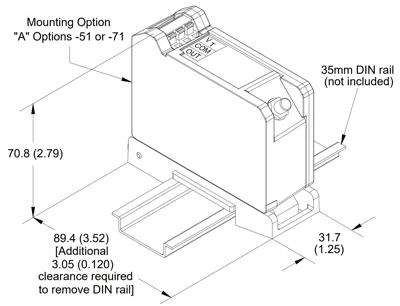

| Mounting | DIN-rail mount |
| Hazardous-area certification | Multiple approvals (hazardous area) |
| Input | one 3300 NSv or 3300 RAM probe with extension cable |
| Power | -17.5 to -26 Vdc (-23 to -26 Vdc with barriers), 12 mA max |
| Output resistance | 50 ohm |
| Sensitivity (system) | 7.87 V/mm (200 mV/mil) |
| Linear range | 1.5 mm (60 mils), 0.25 to 1.75 mm from target |
| Recommended gap | 1.0 mm (40 mils) |
| Frequency response | 0 to 10 kHz (+0, -3 dB) |
| Target material | AISI 4140 steel (factory default) |
| Housing material | A380 aluminum |
| Operating temperature | -52 to +100 C (-62 to +212 F) |
| Weight | 255 g (9 oz) |
Standards
- EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- RoHSRoHS Directive 2011/65/EU
- Hazardous-areaHazardous-area certification per Bently Nevada Approvals Quick Reference Guide 108M1756 (option 05)
Datasheet
3300 XL NSv Proximity Transducer System DatasheetDoc. 147385 Rev. R · PDF · manufacturer documentRelated items
