Machinery Protection and Vibration3300 NSv Proximity Probe, 1/4-28 UNF, Armored, Case 9.0 in, 1.0 m
Part number
330902-00-90-10-02-00
Narrow side-view proximity system for tight mounting spaces and small shafts, such as on centrifugal compressors. It measures radial vibration, axial position and speed with a 7.87 V/mm output over a 1.5 mm linear range.
1/4-28 UNFCase thread
Not includedHazardous-area certification
Specifications

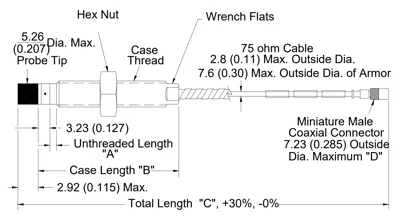

| Probe type | 3300 NSv (narrow side-view) proximity probe |
|---|---|
| Probe tip diameter | 5.26 mm (0.207 in) max |
| Case thread | 1/4-28 UNF |
| Mounting | Forward (standard) mount |
| Armor | AISI 302 stainless steel |
| Unthreaded length | 0.0 in (0 mm) |
| Case length | 9.0 in (229 mm) |
| Total length | 1.0 m (39 in) |
| Connector and cable | Miniature coaxial ClickLoc connector, standard cable |
| Hazardous-area certification | Not included |
| Tip material | Polyphenylene sulfide (PPS) |
| Case material | AISI 304 stainless steel |
| Probe cable | 75 ohm coaxial, FEP insulated |
| Probe temperature | -52 to +177 C (-62 to +351 F) |
| Sensitivity (system) | 7.87 V/mm (200 mV/mil) |
| Linear range | 1.5 mm (60 mils), 0.25 to 1.75 mm from target |
| Recommended gap | 1.0 mm (40 mils) |
| Frequency response | 0 to 10 kHz (+0, -3 dB) |
Standards
- EMCEMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- RoHSRoHS Directive 2011/65/EU
