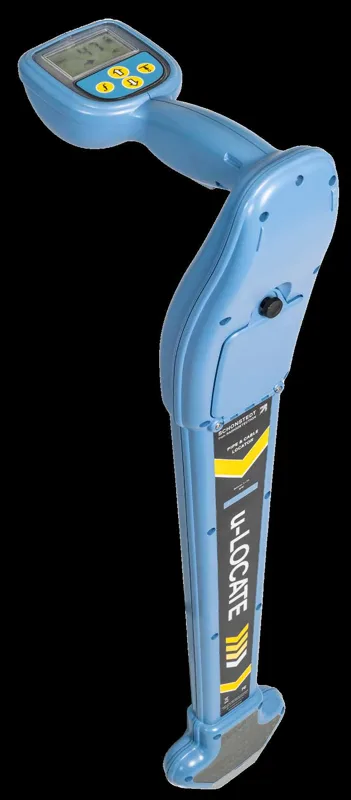

Utility Locating and Detectionu-LOCATE Pipe and Cable Locator Kit
Part number
u-LOCATE
Lightweight pipe and cable locating kits for excavators, contractors and fencing crews to check for buried services before digging. Each kit pairs a receiver with a 1 W transmitter.
82 kHzActive frequency
50/60 HzPassive mode
5.8 mMax depth active mode
5%Positional accuracy
Specifications
| Active frequency | 82 kHz |
|---|---|
| Sonde mode | No |
| Passive mode | 50/60 Hz |
| Max depth active mode | 5.8 m |
| Positional accuracy | 5% |
| Transmitter | 1 W, included, direct connection or induction |
| Battery | Receiver 6 x AA, transmitter 4 x D |
| Usage | 20 h |
| Ingress protection | Receiver IP65, transmitter IP54, NEMA 3S |
| Kit weight | 9 lb (4.1 kg) with batteries |
| Operating temperature | -10 to 50 C |
Standards
