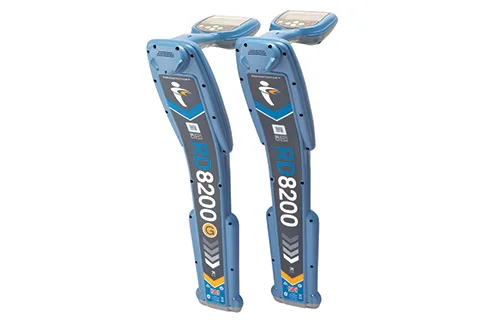

RD8200 — RD8200 Precision Cable and Pipe Locator

Multi-purpose precision locators for tracing buried cables and pipes and pinpointing sheath faults. Current Direction, Power Filters and overload protection help isolate one target line in congested or electrically noisy sites.

512 HzSonde frequencies

PowerPassive modes

+/-3%Depth precision

IP65Ingress protection

Specifications

Active locate frequencies	21 (ELF 98/128 Hz to 200 kHz) plus up to 5 custom (50 Hz-1 kHz)
Sonde frequencies	512 Hz, 640 Hz, 8 kHz, 33 kHz
Passive modes	Power, Radio, CPS, CATV, Passive Avoidance
Current Direction	14 CD signal pairs
Fault find	8KFF and CDFF with A-frame, 100 mm accuracy
Max depth readout	Cable/pipe 30 m, sonde 19.5 m
Depth precision	+/-3%
Sensitivity	6E-15 T (5 uA at 1 m, 33 kHz)
Connectivity	Bluetooth 2.0 class 1 + Bluetooth LE 5.0, iLOC up to 450 m, USB-C, external GNSS over Bluetooth
Built-in GPS	No
Battery	2 x D-cell alkaline (13 h) or Li-Ion pack (35 h)
Ingress protection	IP65
Weight	1.8 kg (Li-Ion) / 1.9 kg (alkaline)
Dimensions	648 x 286 x 125 mm

Standards

Safety EN 61010-12010
EMC EN 61326-12013
ENEN 300 330-2 V1.5.1
ENEN 300 440-2 V1.4.1
ENEN 301 489-3 V1.6.1
ENEN 301 489-17 V2.2.1
IPIP EN 60529
FCCFCC
ICIC
ISO 90012015

Datasheet

RD8200 Locator SpecificationDoc. 90/RD8200-TS-ENG Rev. 07 · PDF · manufacturer document
