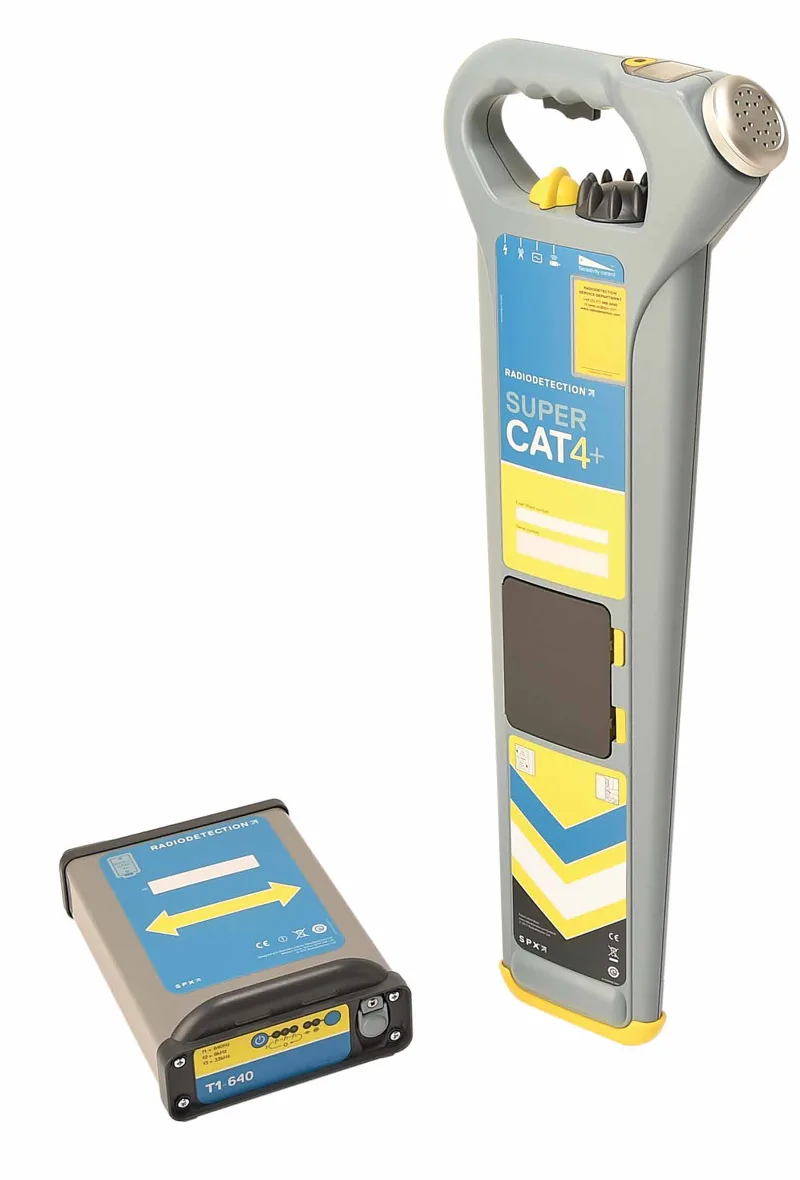

Utility Locating and DetectionSuperCAT4+ Multi-Utility Locator
Part number
SuperCAT4+
Cable avoidance locators with extra passive, sonde and active frequencies aimed at specific utilities. The S model suits water and drain pipes; the CPS model traces cathodically protected pipelines.
512/640 HzSonde frequencies
512/640 HzActive frequencies
15-30 kHzRadio mode
IP54Ingress protection
Specifications
| Sonde frequencies | 512/640 Hz, 33 kHz |
|---|---|
| Active frequencies | 512/640 Hz, 8 kHz, 33 kHz, 65 kHz, 131 kHz (with T1 transmitters) |
| Depth readout | Line 5% from 0.1-3 m, sonde 5% from 0.1-7 m |
| Power mode | 50 Hz-1.5 kHz, 3 mA at 1 m |
| Radio mode | 15-30 kHz, 25 uA at 1 m |
| Dynamic Overload Protection | 40 dB at 50 Hz |
| Battery | 2 x D-cell alkaline or NiMH |
| Ingress protection | IP54 |
| Weight | 2.3 kg with batteries |
| Operating temperature | -20 to 50 C |
Standards
