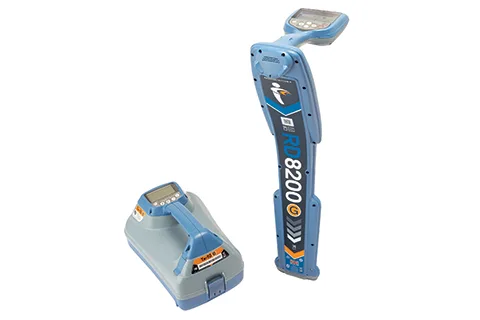

Utility Locating and DetectionRD8200G Precision Cable and Pipe Locator with GPS
Part number
RD8200G
Multi-purpose precision locators for tracing buried cables and pipes and pinpointing sheath faults. Current Direction, Power Filters and overload protection help isolate one target line in congested or electrically noisy sites.
512 HzSonde frequencies
PowerPassive modes
+/-3%Depth precision
IP65Ingress protection
Specifications
| Active locate frequencies | 21 (ELF 98/128 Hz to 200 kHz) plus up to 5 custom (50 Hz-1 kHz) |
|---|---|
| Sonde frequencies | 512 Hz, 640 Hz, 8 kHz, 33 kHz |
| Passive modes | Power, Radio, CPS, CATV, Passive Avoidance |
| Current Direction | 14 CD signal pairs |
| Fault find | 8KFF and CDFF with A-frame, 100 mm accuracy |
| Max depth readout | Cable/pipe 30 m, sonde 19.5 m |
| Depth precision | +/-3% |
| Sensitivity | 6E-15 T (5 uA at 1 m, 33 kHz) |
| Connectivity | Bluetooth 2.0 class 1 + Bluetooth LE 5.0, iLOC up to 450 m, USB-C |
| Built-in GPS | GNSS (GPS + GLONASS), 2.5 m CEP with SBAS |
| Usage logging | Every second with position, over 500 days at 8 h/day |
| Battery | 2 x D-cell alkaline (13 h) or Li-Ion pack (35 h) |
| Ingress protection | IP65 |
| Weight | 1.8 kg (Li-Ion) / 1.9 kg (alkaline) |
| Dimensions | 648 x 286 x 125 mm |
Standards
- Safety EN 61010-12010
- EMC EN 61326-12013
- ENEN 300 330-2 V1.5.1
- ENEN 300 440-2 V1.4.1
- ENEN 301 489-3 V1.6.1
- ENEN 301 489-17 V2.2.1
- IPIP EN 60529
- FCCFCC
- ICIC
- ISO 90012015
