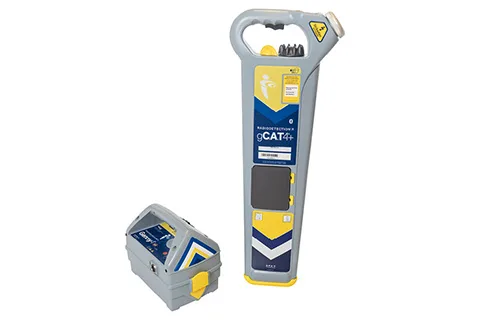

Utility Locating and DetectiongC.A.T4+ Cable Avoidance Tool with GPS and Data Logging
Part number
gC.A.T4+
Fourth-generation cable avoidance tools for checking a site before digging. They detect power, radio and Genny4 signals and warn of shallow services; higher models add depth, GPS and usage logging.
Line 4 mDepth range
USB 2.0Connectivity
YesSWING warning
PowerModes
Specifications
| Model | Dual-frequency cable avoidance tool with depth, GPS and data logging |
|---|---|
| Depth range | Line 4 m, sonde 7 m (accuracy 5%) |
| GPS | 3 m CEP horizontal |
| Data logging | 24 months at 8 h/day, 5 days/week |
| Connectivity | USB 2.0, Bluetooth LE (Android and Apple) |
| SWING warning | Yes |
| Modes | Power, Radio, Genny, Avoidance |
| StrikeAlert | Warning under 30 cm |
| Battery | 2 x D-cell (NiMH 14 h / alkaline 4 h) |
| Ingress protection | IP54, NEMA 3S |
| Weight | 2.3 kg with batteries |
| Dimensions | 716 x 251 x 64 mm |
| Operating temperature | -10 to 50 C |
Standards
