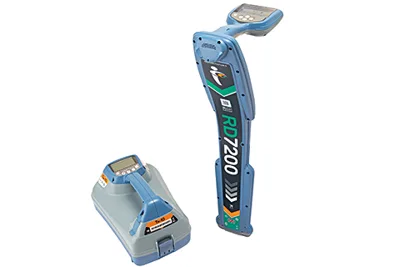

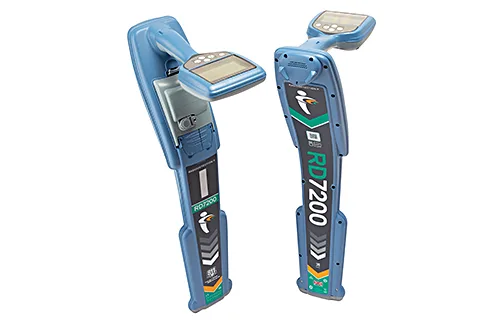

Utility Locating and DetectionRD7200 Precision Cable and Pipe Locator
Part number
RD7200
All-industry precision locator for construction, power, water and telecom work. It traces buried cables and pipes with 8 active and 3 passive modes and gives depth and current readings.
8 (512 HzActive locate frequencies
512 HzSonde frequencies
PowerPassive modes
PeakLocate modes
Specifications
| Active locate frequencies | 8 (512 Hz, 640 Hz, 8 kHz, 33 kHz, 65 kHz, 83 kHz, 131 kHz, 200 kHz) |
|---|---|
| Sonde frequencies | 512 Hz, 640 Hz, 8 kHz, 33 kHz |
| Passive modes | Power, Radio, CPS |
| Locate modes | Peak, Peak+, Guidance, Null |
| Fault find | 8KFF with A-frame, 100 mm accuracy |
| Max depth readout | Cable/pipe 30 m, sonde 19.5 m |
| Depth precision | +/-3% |
| Connectivity | Bluetooth LE 5.0, USB-C |
| Battery | 2 x D-cell alkaline (13 h) or Li-Ion pack (35 h) |
| Ingress protection | IP65 |
| Weight | 1.8 kg (Li-Ion) / 1.9 kg (alkaline) |
| Dimensions | 648 x 286 x 125 mm |
| Operating temperature | -20 to 50 C |
Standards
- Safety EN 61010-12010
- EMC EN 61326-12013
- ENEN 300 330-2 V1.5.1
- ENEN 300 440-2 V1.4.1
- ENEN 301 489-3 V1.6.1
- ENEN 301 489-17 V2.2.1
- IPIP EN 60529
- FCCFCC
- ICIC
- ISO 90012015
Related items

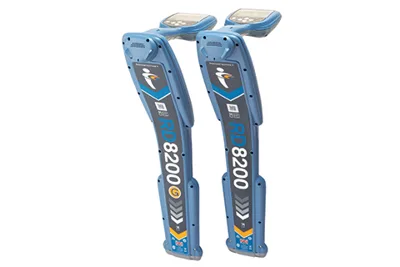

RD8200 Precision Cable and Pipe LocatorsRD8200RD8200 Precision Cable and Pipe Locator

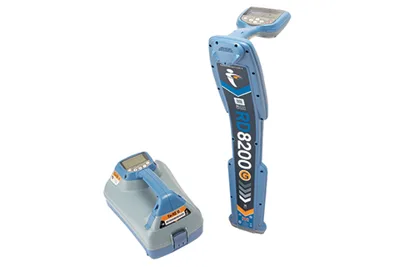

RD8200 Precision Cable and Pipe LocatorsRD8200GRD8200G Precision Cable and Pipe Locator with GPS

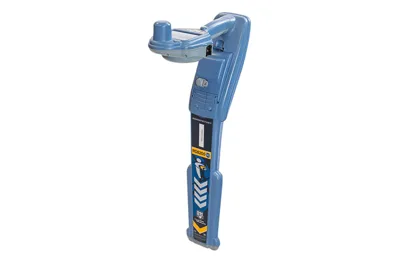

RD8200SG Survey Grade LocatorRD8200SGRD8200SG Survey Grade Locator

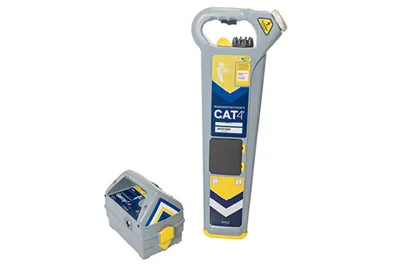

C.A.T4 Cable Avoidance ToolsC.A.T4C.A.T4 Cable Avoidance Tool
C.A.T4 Cable Avoidance ToolsC.A.T4+C.A.T4+ Cable Avoidance Tool with Depth
C.A.T4 Cable Avoidance ToolsgC.A.T4+gC.A.T4+ Cable Avoidance Tool with GPS and Data Logging

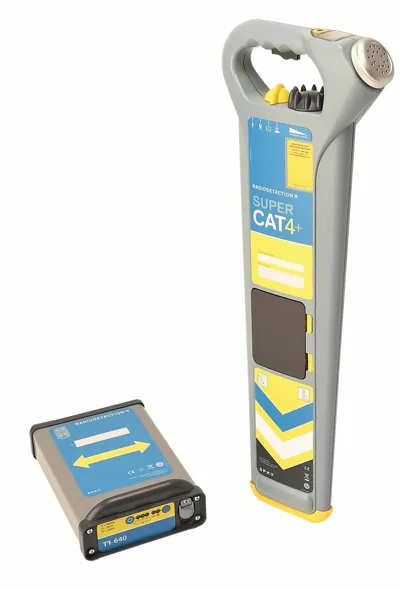

SuperCAT4+ Cable Avoidance LocatorsSuperCAT4+SuperCAT4+ Multi-Utility Locator

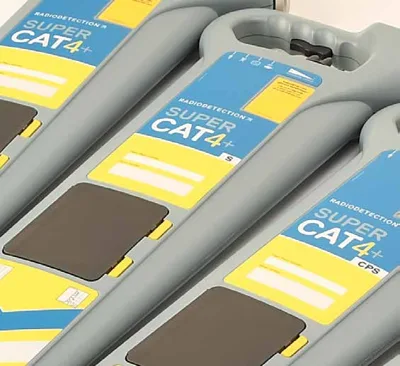

SuperCAT4+ Cable Avoidance LocatorsSuperCAT4+ SSuperCAT4+ S Locator for Water and Drain Pipes
