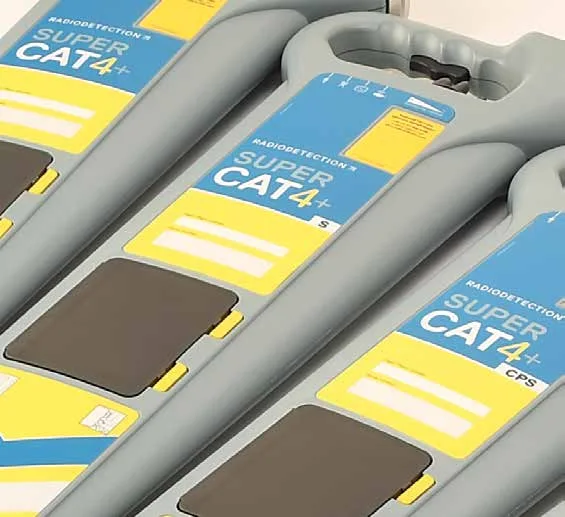

Utility Locating and DetectionSuperCAT4+ CPS Locator for Cathodically Protected Pipelines
Part number
SuperCAT4+ CPS
Cable avoidance locators with extra passive, sonde and active frequencies aimed at specific utilities. The S model suits water and drain pipes; the CPS model traces cathodically protected pipelines.
CPSPassive modes
512/640 HzActive frequencies
15-30 kHzRadio mode
IP54Ingress protection
Specifications
| Passive modes | CPS, Radio, Power |
|---|---|
| Active frequencies | 512/640 Hz, 8 kHz, 33 kHz (with T1-512/T1-640) |
| Depth readout | Line 5% from 0.1-3 m, sonde 5% from 0.1-7 m |
| Power mode | 50 Hz-1.5 kHz, 3 mA at 1 m |
| Radio mode | 15-30 kHz, 25 uA at 1 m |
| Dynamic Overload Protection | 40 dB at 50 Hz |
| Battery | 2 x D-cell alkaline or NiMH |
| Ingress protection | IP54 |
| Weight | 2.3 kg with batteries |
| Operating temperature | -20 to 50 C |
Standards
Related items
RD8200 Precision Cable and Pipe LocatorsRD8200RD8200 Precision Cable and Pipe Locator
RD8200 Precision Cable and Pipe LocatorsRD8200GRD8200G Precision Cable and Pipe Locator with GPS

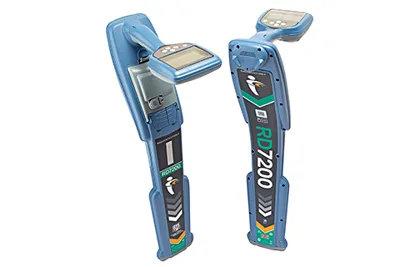

RD7200 Precision Cable and Pipe LocatorRD7200RD7200 Precision Cable and Pipe Locator
