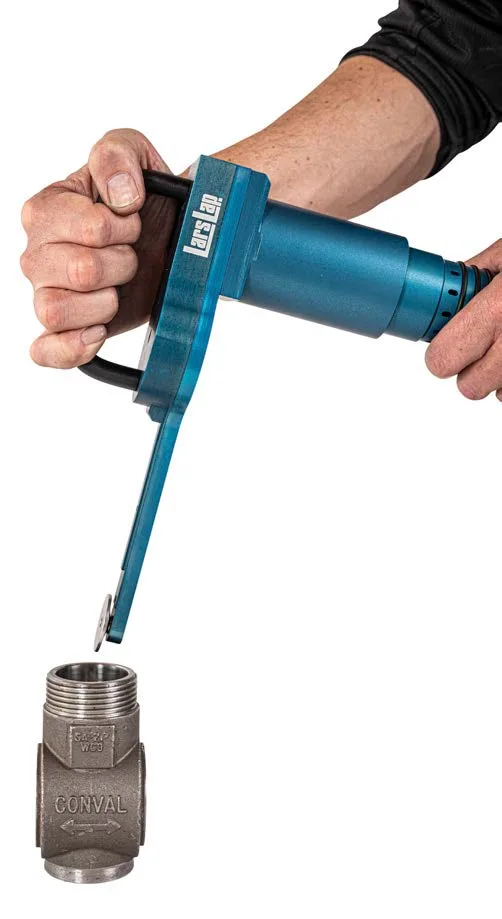

Valve Maintenance EquipmentModel SH Handheld Valve Grinding Machine
Part number
Model SH
A handheld grinder for gate valves and wedges with flat seats from 10 to 50 mm. Air-driven with adjustable speed for close control of the finished surface.
15 mm (0.5")Dimension B
AirDrive
RoughSupplied with
Specifications
| Flat seat range A | Ø 10 - 50 mm (0.4" - 2") |
|---|---|
| Dimension D | 20 - 65 mm (0.8" - 2.5") |
| Dimension B | 15 mm (0.5") |
| Dimension C | 120 mm (4.7") |
| Drive | Air, 6 - 7 bar |
| Valve types | Gate valves and wedges with flat seats |
| Abrasive disc sizes | 3 sizes cover the full range |
| Grinding discs | Self-adhesive, 40 to 1000 grit available |
| Supplied with | Rough, medium and fine grinding discs |
| Storage | Heavy-duty carrying/storage case |
| Carrying case | 570 x 390 x 170 mm |
| Total weight | 9 kg (19.8 lb) |
Standards
