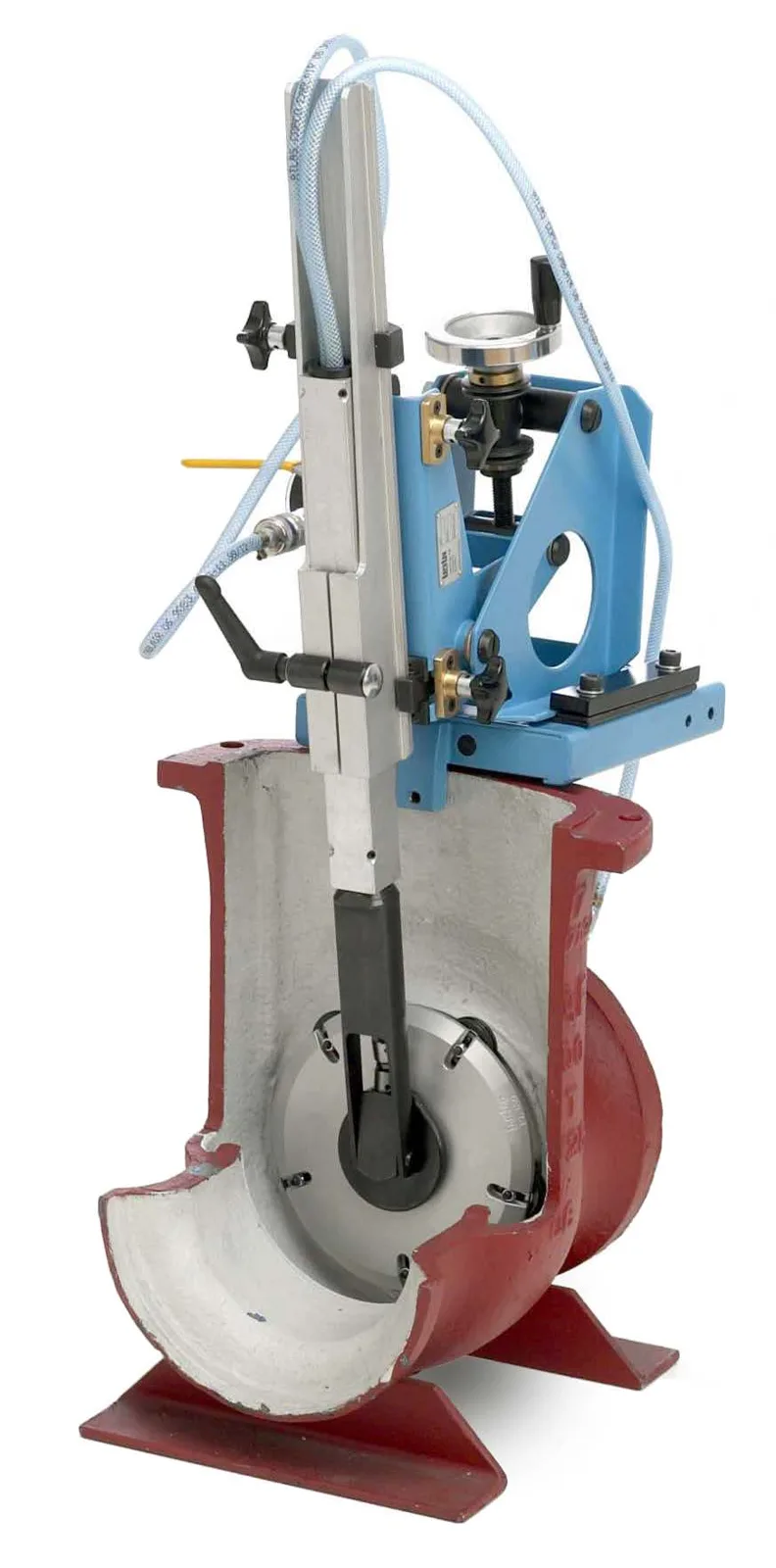

Valve Maintenance EquipmentModel FL Valve Grinding Machine
Part number
Model FL
A mid-range portable grinder for gate, parallel slide, globe, check, safety and control valves, discs and wedges with flat seats from 50 to 300 mm. Individually driven grinding heads produce a flat sealing surface.
100 mm minDimension C
80 - 357 mmDimension D
570 mm minDimension L
VariableSpeed
Specifications
| Flat seat range A | Ø 50 - 300 mm (2" - 12") |
|---|---|
| Dimension B | 39 mm (1.56") min |
| Dimension C | 100 mm min, 600 mm standard, 1000 mm max (option) |
| Dimension D | 80 - 357 mm |
| Dimension L | 570 mm min |
| Drive | Air 6 - 7 bar standard, electric optional |
| Speed | Variable |
| Valve types | Gate, parallel slide, globe, check, safety and control valves, discs and wedges |
| Included | Mounting plate for discs and wedges |
| Grinding discs | Self-adhesive, 40 to 1000 grit available |
| Supplied with | Rough, medium and fine grinding discs |
| Storage | Heavy-duty carrying/storage case |
| Carrying case | 760 x 560 x 280 mm |
| Total weight | 39 kg (87.8 lb) |
Standards
