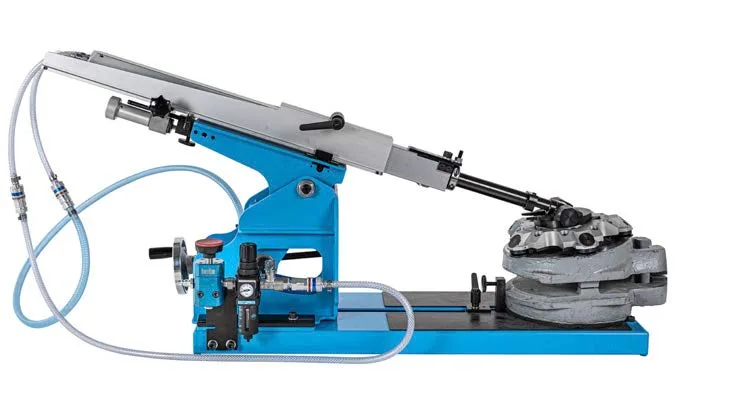

Valve Maintenance EquipmentModel G Valve Grinding Machine
Part number
Model G

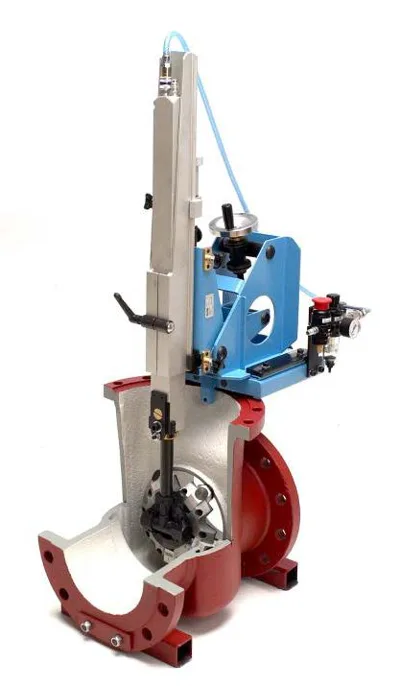

The large-range grinder for gate, parallel slide, globe, check, safety and control valves, discs and wedges with flat seats from 150 to 1300 mm. A tilting driving head lets one drive unit grind both gate and globe valves.
100 mm minDimension C
730 mm minDimension L
GateValve types
RoughSupplied with
Specifications
| Flat seat range A | Ø 150 - 1300 mm (6" - 52") |
|---|---|
| Dimension B | 68 mm (2.72") min |
| Dimension C | 100 mm min, 900 mm standard, 1500 mm max (option) |
| Dimension D | 150 - 1371 mm |
| Dimension L | 730 mm min |
| Drive | Air 6 - 7 bar standard, electric optional |
| Heads | Individually driven, diametrically adjustable |
| Valve types | Gate, parallel slide, globe, check, safety and control valves, discs and wedges |
| Grinding discs | Self-adhesive, 40 to 1000 grit available |
| Supplied with | Rough, medium and fine grinding discs |
| Storage | Heavy-duty carrying/storage case |
| Carrying case | 960 x 520 x 380 mm |
| Total weight | 67 kg (148 lb) |
Standards
