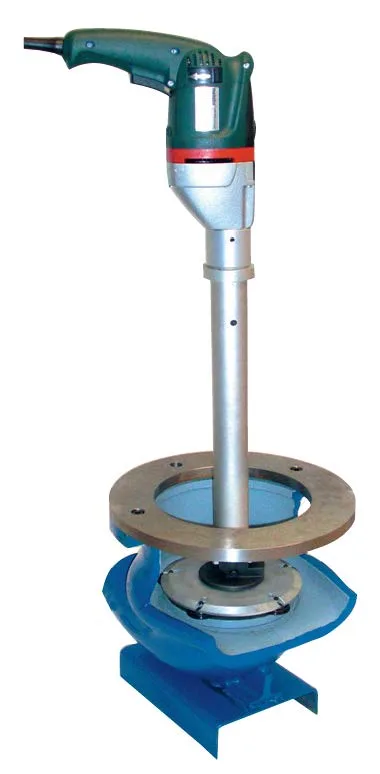

Valve Maintenance EquipmentModel FL-H Valve Grinding Machine
Part number
Model FL-H
A portable grinder for gate, globe, check, safety and control valves with flat seats from 50 to 200 mm. Individually driven grinding heads give a flat seat, and the machine switches quickly between gate and globe work.
100 mm minDimension C
80 - 257 mmDimension D
ReversibleSpeed
GateValve types
Specifications
| Flat seat range A | Ø 50 - 200 mm (2" - 8") |
|---|---|
| Dimension B | 39 mm (1.56") min |
| Dimension C | 100 mm min, 600 mm standard, 1000 mm max (option) |
| Dimension D | 80 - 257 mm |
| Drive | Compressed air 6 - 7 bar, electric battery or electric 110/220 V |
| Speed | Reversible, variable |
| Valve types | Gate, globe, check, safety and control valves |
| Options | Angled-seat grinding heads, adjustable guiding plates, diamond discs |
| Grinding discs | Self-adhesive, 40 to 1000 grit available |
| Supplied with | Rough, medium and fine grinding discs |
| Storage | Heavy-duty carrying/storage case |
| Carrying case | 750 x 615 x 135 mm |
| Total weight | 17 kg (37.5 lb) |
