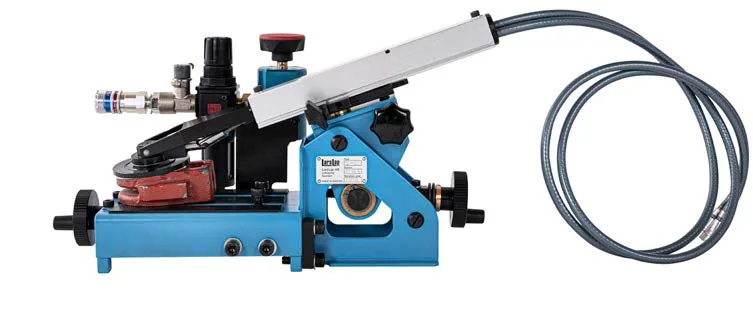

Valve Maintenance EquipmentModel S Valve Grinding Machine
Part number
Model S

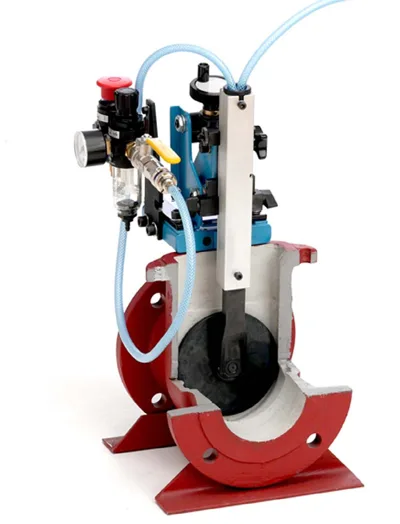

A portable grinder for gate and parallel slide valves, discs and wedges with flat seats from 25 to 150 mm. It comes with 3° angle grinding plates as standard.
40 - 350 mmDimension C
35 - 120 mmDimension D
320 - 440 mmDimension L
RoughSupplied with
Specifications
| Flat seat range A | Ø 25 - 150 mm (1" - 6") |
|---|---|
| Dimension B | 19 mm (0.74") min |
| Dimension C | 40 - 350 mm |
| Dimension D | 35 - 120 mm |
| Dimension L | 320 - 440 mm |
| Grinding plates | 3° angle as standard |
| Drive | Air 6 - 7 bar standard, electric optional |
| Valve types | Gate and parallel slide valves, discs and wedges |
| Grinding discs | Self-adhesive, 40 to 1000 grit available |
| Supplied with | Rough, medium and fine grinding discs |
| Storage | Heavy-duty carrying/storage case |
| Carrying case | 600 x 470 x 230 mm |
| Total weight | 15 kg (33.75 lb) |
