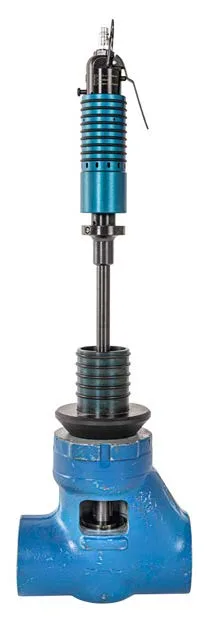

Valve Maintenance EquipmentModel K Valve Grinding Machine
Part number
Model K
Portable valve seat grinders for globe, control and safety valves with flat or angled seats from 8 mm. They regrind the seat in place, so the valve stays in the line.
18 - 170 mmDimension B
80 - 280 mmDimension C
20 mm minDimension D
30Seat angle E
Specifications
| Flat seat range | Ø 8 - 150 mm (1/4" - 6") |
|---|---|
| Angled seat range | Ø 8 - 65 mm (1/4" - 2 1/2") |
| Dimension B | 18 - 170 mm |
| Dimension C | 80 - 280 mm |
| Dimension D | 20 mm min |
| Seat angle E | 30, 40, 60, 75, 90° (2 x 15/20/30/37.5/45°) |
| Drive | Compressed air 6 - 7 bar, electric battery or electric 110/220 V |
| Speed | Reversible, variable |
| Valve types | Globe, control and safety valves |
| Grinding discs | Self-adhesive, 40 to 1000 grit available |
| Supplied with | Rough, medium and fine grinding discs |
| Storage | Heavy-duty carrying/storage case |
| Carrying case | 530 x 400 x 240 mm |
| Total weight | 20 kg (42 lb) |
Standards
