Machinery Protection and Vibration3500/92 Communication Gateway Module 136180-01
Part number
3500/92 136180-01

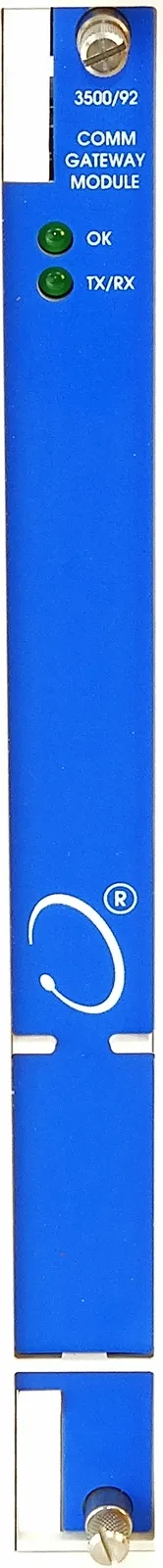

A 3500 module that shares all rack measurements, statuses and alarms with control and automation systems. It supports Modbus over serial links and Modbus/TCP over Ethernet.
OKFront LEDs
0.82 kgWeight
Specifications
| Protocols | Modicon Modbus (serial), Modbus/TCP, Bently Nevada protocol for 3500 software |
|---|---|
| Serial interfaces | RS232 / RS422 / RS485 via selected I/O module |
| Ethernet | 10 Mbps 10BASE-T, IEEE 802.3, RJ-45 |
| Data | all rack measured values with time stamp, module statuses and alarm statuses |
| Update time | 1 s max for all modules in the rack |
| Power consumption | 5.0 W typical (RS232/RS422 I/O), 5.6 W typical (RS485 I/O) |
| Front LEDs | OK, TX/RX |
| Dimensions (H x W x D) | 241 x 24.4 x 242 mm |
| Weight | 0.82 kg |
| Rack space | 1 full-height front slot + 1 rear I/O slot |
| Operating temperature | -30 to +65 °C |
| Storage temperature | -40 to +85 °C |
| Humidity | 95% non-condensing |
Standards
- EMCEMC 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- LVDLVD 2014/35/EU (EN 61010-1)
- RoHSRoHS 2011/65/EU
- FCCFCC Part 15
- cNRTLuscNRTLus Class I Div 2 and Class I Zone 2, ATEX/IECEx II 3 G Ex ec nC ic IIC T4 Gc (with approval option 01/02)
- DNVDNV GL and ABS marine rules
