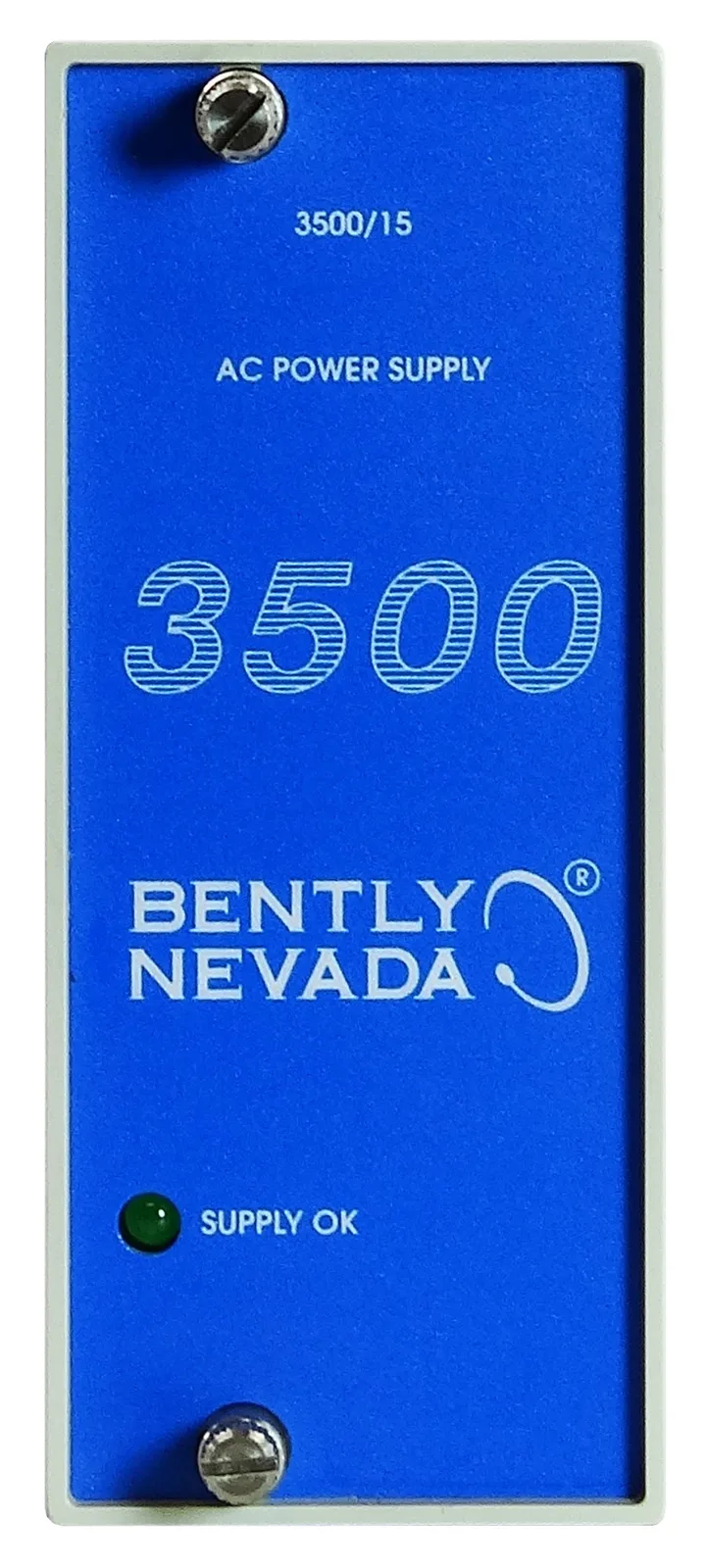

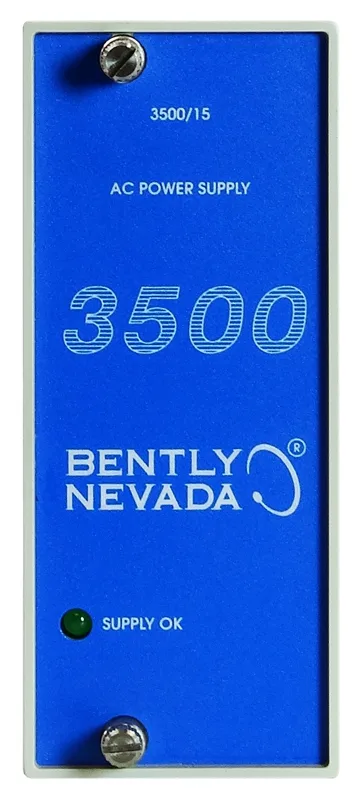

Machinery Protection and Vibration3500/15 Universal AC Power Supply Module 106M1079-01
Part number
3500/15 106M1079-01
Half-height power supply modules and matching rear Power Input Modules for the 3500 machinery protection rack. They convert the plant supply into the voltages the rack modules need, and two can be fitted for redundant power.
47 to 63 HzInput frequency
Supply OKFront LED
1.39 kgWeight
Specifications
| Module | Universal AC Power Supply, half-height front slot (spare 106M1079-01) |
|---|---|
| Input voltage | 85 to 264 Vac rms (non-hazardous), 85 to 250 Vac rms (hazardous areas), 110 to 220 Vac nominal |
| Input frequency | 47 to 63 Hz |
| Full rack current draw | 2.8 A rms max |
| Matching PIM | Universal AC Power Input Module 106M1081-01 |
| Redundancy | 2 supply slots, one or two supplies per rack |
| Front LED | Supply OK |
| Dimensions (H x W x D) | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Compatibility | not compatible with legacy AC supplies or legacy AC PIMs |
| Operating temperature | -30 to +65 °C |
| Storage temperature | -40 to +85 °C |
| Humidity | 95% non-condensing |
Standards
- EMCEMC 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- LVDLVD 2014/35/EU (EN 61010-1)
- RoHSRoHS 2011/65/EU
- FCCFCC Part 15
- cNRTLuscNRTLus Class I Div 2 and Class I Zone 2, ATEX/IECEx II 3 G Ex ec nC ic IIC T4 Gc (with approval option 01/02)
- DNVDNV GL and ABS marine rules
Related items
3500/33 16-Channel Relay Module3500/32M 149986-013500/33 16-Channel Relay Control Module 149986-01
3500/32M 4-Channel Relay Module3500/32M 149986-023500/32M 4-Channel Relay Control Module 149986-02
3500/22M Transient Data Interface3500/22 146031-013500/22M TDI 10Base-T/100Base-TX Ethernet I/O Module 146031-01
3500/22M Transient Data Interface3500/22 288055-013500/22M Transient Data Interface Module 288055-01

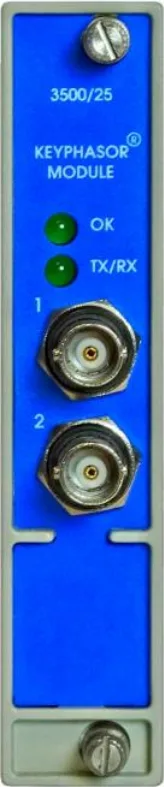

3500/25 Enhanced Keyphasor Module3500/25 149369-013500/25 Enhanced Keyphasor Module 149369-01
3500/42M Proximitor Seismic Monitor3500/42M 176449-023500/42M Proximitor Seismic Monitor 176449-02
3500/45 Position Monitor3500/45 176449-043500/45 Position Monitor 176449-04

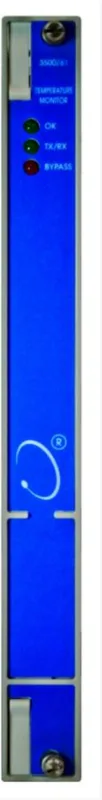

3500/60 and 3500/61 Temperature Modules3500/61-01-00 163179-023500/61 Temperature Monitor with Recorder Outputs 163179-02
