Bently Nevada

Machinery Protection and Vibration

3500/45 Position Monitor 176449-04

Part number

3500/45 176449-04

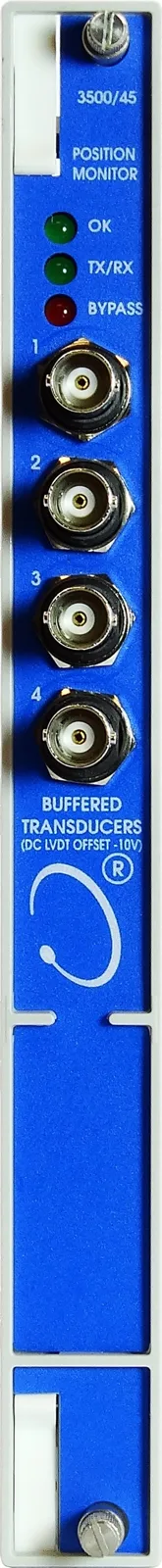

3500/45 Position Monitor 176449-04

A four-channel 3500 monitor for position measurements such as thrust, differential expansion, case expansion and valve position. It accepts proximity probes, rotary position transducers, LVDTs and rotary potentiometers.

4Channels

0.91 kgWeight

Specifications

Channels	4, programmed in pairs
Inputs	proximity transducers, RPTs, DC LVDTs, AC LVDTs, rotary potentiometers
Functions	axial (thrust) position, differential expansion (single/dual ramp, complementary), case expansion, valve position
Power consumption	7.7 W typical (position I/O), 8.5 W (AC LVDT I/O), 5.6 W (rotary potentiometer I/O)
Input impedance	10 kΩ (Proximitor/RPT), 1 MΩ (DC LVDT), 137 kΩ (AC LVDT), 200 kΩ (potentiometer)
Accuracy	±0.33% of full scale typical, ±1% max
Dimensions (H x W x D)	241.3 x 24.4 x 241.8 mm
Weight	0.91 kg
Rack space	1 full-height front slot + 1 rear I/O slot
Operating temperature	-30 to +65 °C
Storage temperature	-40 to +85 °C
Humidity	95% non-condensing
