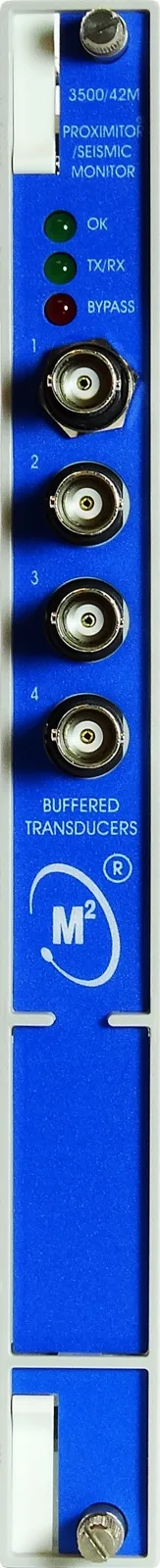

3500/42M 176449-02 — 3500/42M Proximitor Seismic Monitor 176449-02

A four-channel 3500 monitor that accepts proximity, velocity and acceleration transducers. It converts them into vibration and position readings and drives alert and danger alarms; separate rear I/O modules set the transducer wiring and barrier options.

4Channels

10 kΩInput impedance

-24 VdcTransducer power

0.91 kgWeight

Specifications

Channels	4, configured in pairs
Inputs	1 to 4 proximity, velocity or acceleration transducers
Input impedance	10 kΩ
Transducer power	-24 Vdc
Power consumption	7.7 W typical
Buffered outputs	1 front coaxial connector per channel, 550 Ω
Recorder outputs	+4 to +20 mA per channel
Accuracy	±0.33% of full scale typical, ±1% max
Operating temperature	-30 to +65 °C (0 to +65 °C with internal-barrier I/O)
Storage temperature	-40 to +85 °C
Humidity	95% non-condensing
Size (H x W x D)	241.3 x 24.4 x 241.8 mm
Weight	0.91 kg
Rack space	1 full-height front slot + 1 rear slot for the I/O module
Set-up	3500 Rack Configuration Software

Standards

EMCEMC 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
LVDLVD 2014/35/EU (EN 61010-1)
RoHSRoHS 2011/65/EU
FCCFCC Part 15
cNRTLuscNRTLus Class I Div 2 and Class I Zone 2, ATEX/IECEx II 3 G Ex ec nC ic IIC T4 Gc (with approval option 01/02)
DNVDNV GL and ABS marine rules
hazardous-areahazardous-area rating also depends on the I/O module ordered

Datasheet

3500/42M Proximitor Seismic Monitor DatasheetDoc. 143694 Rev. AE · PDF · manufacturer document
