Bently Nevada

Machinery Protection and Vibration

3500/61 Temperature Monitor with Recorder Outputs 163179-02

Part number

3500/61-01-00 163179-02

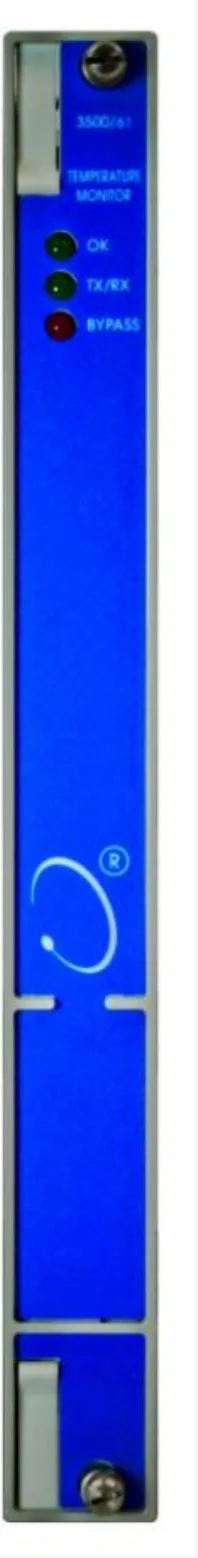

3500/61 Temperature Monitor with Recorder Outputs 163179-02

Six-channel 3500 temperature monitors for RTD and thermocouple inputs, with alarms against configured setpoints. The 3500/61 adds a 4 to 20 mA recorder output on every channel.

9 W nominalPower consumption

1 °CResolution

0.91 kgWeight

Specifications

Ordering code	3500/61-01-00 (I/O option 01 RTD/TC non-isolated internal terminations, approvals none)
Channels	6 RTD or TC inputs
TC types	J (-18 to +760 °C), K (-18 to +1370 °C), T (-160 to +400 °C), E (-100 to +1000 °C)
RTD	100 Ω platinum (alpha 0.00385/0.00392) 3-wire and 4-wire, 120 Ω nickel, 10 Ω copper
Input impedance	10 MΩ per lead
Power consumption	9 W nominal
Recorder outputs	+4 to +20 mA per channel
Resolution	1 °C
Accuracy	±1 °C at 25 °C (standard rack, non-isolated I/O)
Dimensions (H x W x D)	241.3 x 24.4 x 241.8 mm
Weight	0.91 kg
Rack space	1 full-height front slot + 1 rear I/O slot
Operating temperature	-30 to +65 °C
Storage temperature	-40 to +85 °C
Humidity	95% non-condensing
