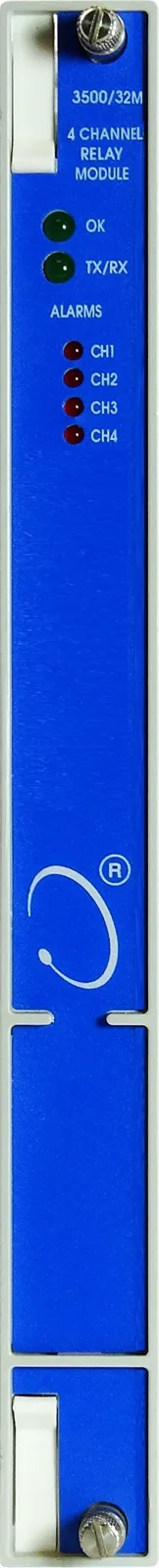

Machinery Protection and Vibration3500/32M 4-Channel Relay Control Module 149986-02
Part number
3500/32M 149986-02
A full-height 3500 module with four relay outputs driven by programmable alarm logic from any monitor channel in the rack. It is the usual way to connect 3500 alarms to machine shutdown circuits.
OKFront LEDs
4 channelsRelays
100Contact life
0.7 kgWeight
Specifications
| Module | 4-Channel Relay Control Module (front, full-height) |
|---|---|
| Power consumption | 5.8 W typical |
| Front LEDs | OK, TX/RX, CH ALARM per channel |
| Logic | Alarm Drive Logic with AND/OR voting of Alert, Danger, Not-OK or individual PPLs from any rack channel |
| Relays | 4 channels, SPDT, epoxy-sealed, 250 Vrms arc suppressors |
| Contact ratings (standard systems) | 2 A @ 0-30 Vdc, 0.75 A @ 48 Vdc, 0.2 A @ 125 Vdc, 250 Vac 2 A 450 VA max (resistive) |
| Minimum switched current | 100 mA @ 12 Vdc |
| Contact ratings (hazardous-area / SIL systems) | 30 Vdc / 30 Vac, 2 A max |
| Contact life | 100,000 cycles @ 5 A, 24 Vdc or 240 Vac |
| Operation | each relay switch-selectable normally energized / de-energized |
| Dimensions (H x W x D) | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
| Rack space | 1 full-height front slot (any slot right of the TDI) |
| Requires | 3500/22 TDI, Rack Configuration software 4.5 or later |
| Operating temperature | -30 to +65 °C |
Standards
- EMCEMC 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
- LVDLVD 2014/35/EU (EN 61010-1)
- RoHSRoHS 2011/65/EU
- FCCFCC Part 15
- cNRTLuscNRTLus Class I Div 2 and Class I Zone 2, ATEX/IECEx II 3 G Ex ec nC ic IIC T4 Gc (with approval option 01/02)
- DNVDNV GL and ABS marine rules
