Utility Locating and DetectionGA-92XTd Magnetic Locator
Part number
GA-92XTd

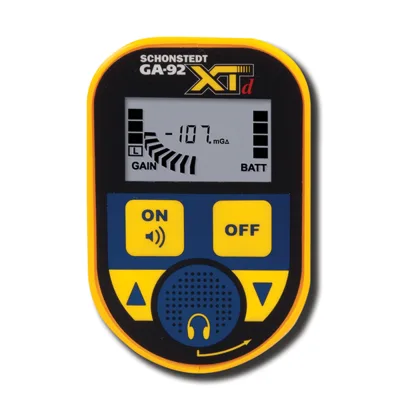

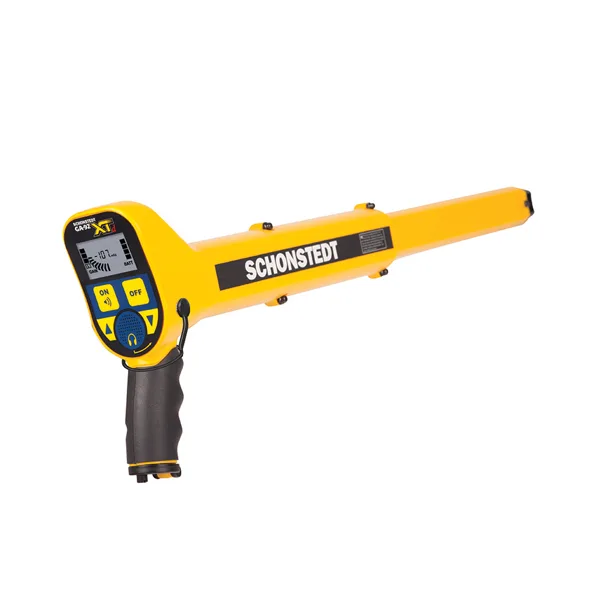

A hand-held magnetic locator that detects buried iron and steel objects such as property markers, valve boxes, manhole covers, well casings and steel drums. It senses the difference in the earth's magnetic field between two sensors and ignores non-ferrous metals like aluminium, brass and copper. Compact pistol-grip magnetic locator with a collapsible housing, membrane keypad, bar-graph display with polarity, and a holster for storage.
4 levels: LGain
Specifications
| Sensor type | HeliFlux magnetic field gradient sensors |
|---|---|
| Audio output | Frequency varies with signal strength, 30 to 4000 Hz |
| Visual output | Expanding bar graph with +/- polarity |
| Gain | 4 levels: L, M, H, XH |
| Volume | 3 levels: muted, medium, high |
| Battery indicator | 4-segment LCD |
| Input power | 1 x 9 V battery |
| Battery life | 24 h (intermittent use) |
| Operating temperature | -25 to +60 °C (-13 to 140 °F) |
| Water and dust resistance | IP54 (with earphone jack plug fitted) |
| Overall length | Open 66 cm (26 in), closed 39 cm (15.5 in) |
| Nominal sensor spacing | 24 cm (9.5 in) |
| Weight | 1.1 kg (2.4 lb) |
| Construction | High-impact ABS |
| Typical depth - well casing | 4.88 m (16 ft) |
Standards
- IP54IP54
