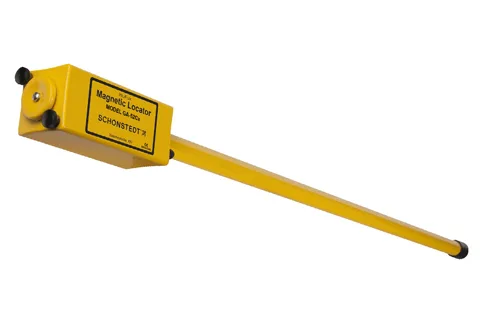

Utility Locating and DetectionGA-52Cx Magnetic Locator
Part number
GA-52Cx
A hand-held magnetic locator that detects buried iron and steel objects such as property markers, valve boxes, manhole covers, well casings and steel drums. It senses the difference in the earth's magnetic field between two sensors and ignores non-ferrous metals like aluminium, brass and copper. Rugged stick-type magnetic locator in a metal housing with two rotary controls (on/off-sensitivity and volume) and a clear audio response.
5Sensitivity levels
Audio toneOutput
YesHeadphone compatible
RuggedConstruction
Specifications
| Sensor type | HeliFlux magnetic field gradient sensors |
|---|---|
| Sensitivity levels | 5 |
| Output | Audio tone, approx. 40 Hz idle |
| Headphone compatible | Yes |
| Input power | 2 x 9 V alkaline batteries |
| Battery life | 40 h (intermittent use) |
| Weight | approx. 1.13 kg (2.5 lb) |
| Operating temperature | -25 to +60 °C (-13 to 140 °F) |
| Overall length | 107.4 cm (42.3 in) |
| Waterproof length | 87.6 cm (34.5 in) |
| Nominal sensor spacing | 50.8 cm (20 in) |
| Construction | Rugged, modular, all solid state in aluminium casing |
| Typical depth - well casing | 5.49 m (18 ft) |
| Typical depth - manhole cover | 3.05 m (10 ft) |
Standards
