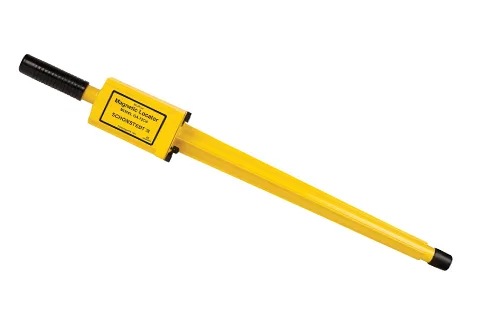

Utility Locating and DetectionGA-72Cd Magnetic Locator
Part number
GA-72Cd
A hand-held magnetic locator that detects buried iron and steel objects such as property markers, valve boxes, manhole covers, well casings and steel drums. It senses the difference in the earth's magnetic field between two sensors and ignores non-ferrous metals like aluminium, brass and copper. Rugged magnetic locator with a 3-digit LCD showing signal strength and polarity, a choice of peak or null audio response and an analogue output for data logging.
4Sensitivity levels
YesHeadphone compatible
Specifications
| Sensor type | HeliFlux magnetic field gradient sensors |
|---|---|
| Sensitivity levels | 4 |
| Audio output | Switch A: volume varies with gradient-field intensity |

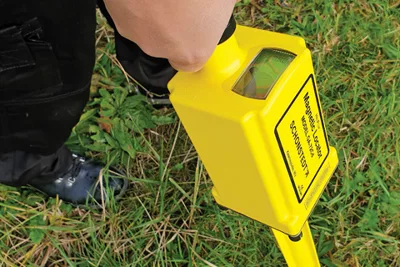

| Visual output | Digital readout with expanding bar graphs showing polarity and relative field strength |
| Battery check | 4-segment LCD indicator |
| Headphone compatible | Yes |
| Input power | 2 x 9 V alkaline batteries |
| Battery life | 40 h (intermittent use) |
| Weight | approx. 1.14 kg (2.5 lb) |
| Operating temperature | -25 to +60 °C (-13 to 140 °F) |
| Overall length | 87.6 cm (34.5 in) |
| Waterproof length | 53.3 cm (21 in) |
| Nominal sensor spacing | 35.6 cm (14 in) |
| Typical depth - well casing | 5.18 m (17 ft) |
Standards
- FCCFCC Part 15
- EMCEMC Directive 2004/108/EC
Related items
GA-52Cx Magnetic LocatorGA-52CxGA-52Cx Magnetic Locator
GA-92XTd Magnetic LocatorGA-92XTdGA-92XTd Magnetic Locator
Maggie Magnetic LocatorMaggieMaggie Magnetic Locator

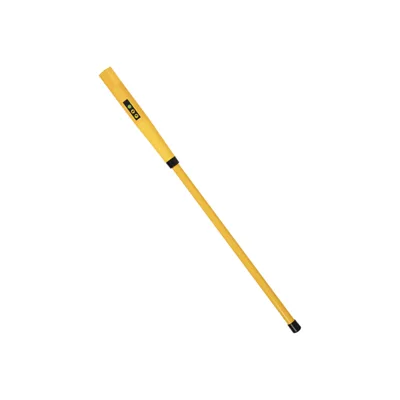

Spot Magnetic LocatorSpotSpot Magnetic Locator
