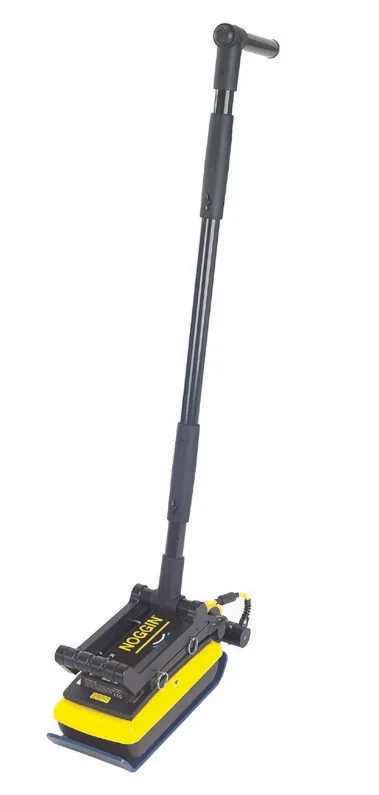

Utility Locating and DetectionNOGGIN 1000 SmartHandle GPR System
Part number
100-10-0322
A configurable ground penetrating radar with sensors from 100 MHz to 1000 MHz and five deployment configurations - SmartCart, SmartTow, SmartSled, SmartChariot and SmartHandle. It suits concrete and bridge decks, utility mapping, archaeology, geology and mining.
100-10-0322Ordering code
1000 MHzCentre frequency
500-1500 MHz-3 dB bandwidth
25 m (82 ft)Max. depth setting
Specifications
| Ordering code | 100-10-0322 |
|---|---|
| Configuration | SmartHandle (100-53-0118, includes deluxe DVL-500 harness, 2.5 m cable, belt battery and charger) |
| GPR sensor | NOGGIN 1000 (100-22-0063) |
| Data logger | DVL-502N touch-screen digital video logger (100-22-0128) |
| Centre frequency | 1000 MHz |
| -3 dB bandwidth | 500-1500 MHz |
| Max. time window | 500 ns @ 0.1 ns/pt |
| Max. depth setting | 25 m (82 ft) |
| Max. stacks | 2048 |
| Data output | 16-bit |
| Sensor size | 30 x 15 x 11 cm |
| Sensor weight | 2.3 kg (5 lb) |
| Performance factor | 160 dB + 10 log10 stacks |
| Acquisition rate | 100,000 samples/s |
| Power | 8 W, 12 V @ 0.6 A DC |
| Operating temperature | Sensor -50 to +50 °C |
| Ingress protection | IP65 |
Standards
- FCC,FCC, ISED (Industry Canada) and ETSI regulations for ultra-wideband (UWB) devices
