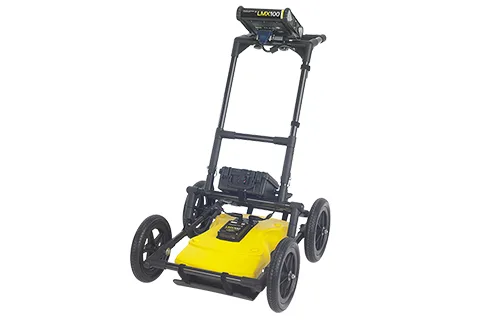

Utility Locating and DetectionLMX100 GPR System
Part number
100-10-0150
A cart-mounted ground penetrating radar for utility locating that finds metallic and non-metallic pipes, ducts and cables, including lines with broken tracer wires. A 250 MHz antenna balances depth (up to 8 m) and resolution, with a simple touch-screen workflow and on-site reports.
10Data storage
IP65Ingress protection
Specifications
| Ordering code | 100-10-0150 (printed as 'LMX100 High Resolution System') |
|---|---|
| Antenna | Ultra-wideband 250 MHz with DynaT target enhancement |
| Depth | Up to 8 m (25-26 ft) |
| Display | 21 cm (8 in) resistive touch screen, usable with gloves |
| Connectivity | Integrated GPS, built-in Wi-Fi, USB |
| Data storage | 10,000+ screenshots |
| Power | 12 V sealed lead-acid gel battery, 9.0 Ah, 4-6 h, 110-240 V charger |
| Size | 100 x 70 x 115 cm |
| Weight | 22 kg (48 lb) |
| Frame | Fibreglass cart, no metal parts |
| Ingress protection | IP65 |
| Includes | LMX spare parts kit 100-54-0154 |
Standards
- FCCFCC 15.509
- ICIC RSS-220
- ETSIETSI EN 302 066
