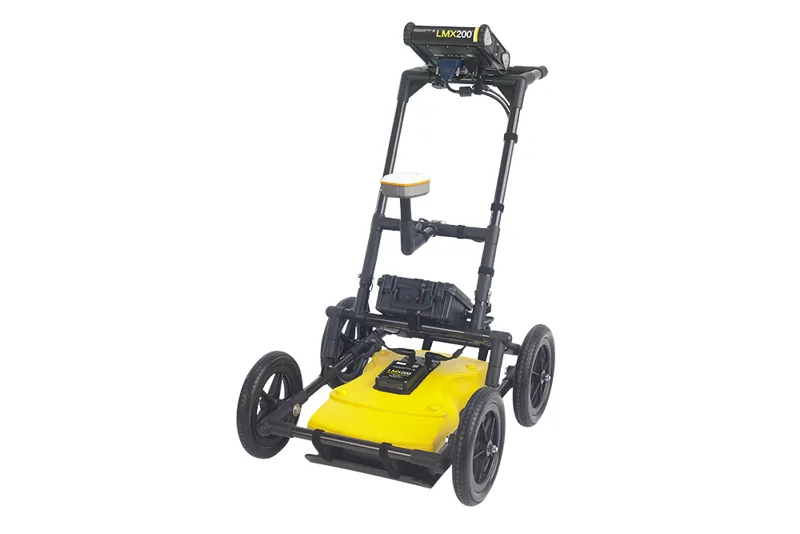

Utility Locating and DetectionLMX200 Enhanced GPR System
Part number
100-10-0148
A ground penetrating radar for locating and mapping utilities, built on the LMX100 with grid scans, depth slices and support for external GNSS with SplitView and MapView. A 250 MHz antenna reaches up to 8 m.
IP65Ingress protection
Specifications
| Ordering code | 100-10-0148 (LMX200 Enhanced System) |
|---|---|
| Antenna | Ultra-wideband 250 MHz with DynaT target enhancement |
| Depth | Up to 8 m (26 ft) |
| Scan modes | Line Scan with SplitView, Grid Scan, MapView |
| Display | 21 cm (8 in) resistive touch screen |
| Connectivity | Integrated GNSS, built-in Wi-Fi, USB |
| Data storage | 380 km (236 miles) of data |
| Power | 12 V sealed lead-acid gel battery, 9.0 Ah, 4-6 h, 110-240 V charger |
| Size | 100 x 70 x 115 cm |
| Weight | 22 kg (48 lb) |
| Ingress protection | IP65 |
| Operating temperature | -20 to +50 °C |
Standards
- FCCFCC 15.509
- ICIC RSS-220
- ETSIETSI EN 302 066
