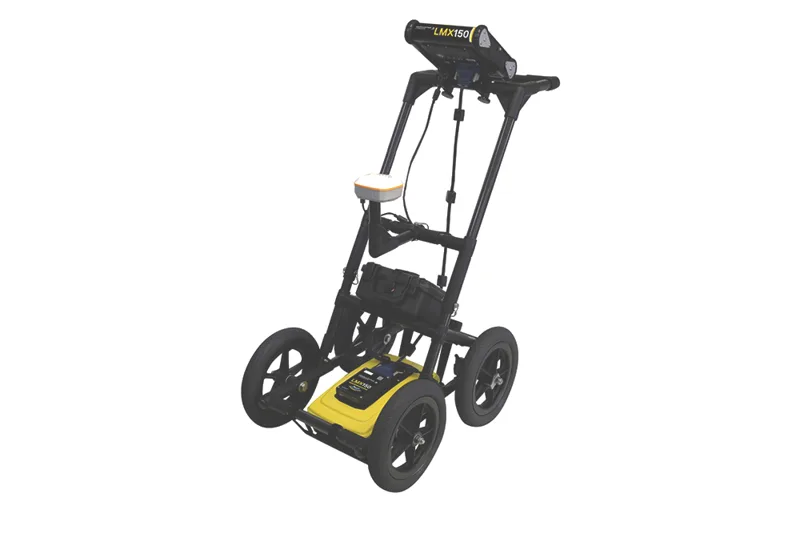

Utility Locating and DetectionLMX150 GPR System
Part number
100-10-0178
A compact, high-resolution ground penetrating radar for locating shallow and small utilities, including plastic pipes and fibre-optic cables. It uses a 500 MHz antenna for scanning to about 3 m, with grid scans and in-field depth slices.
100-10-0178Ordering code
Line ScanScan modes
IP65Ingress protection
Specifications
| Ordering code | 100-10-0178 |
|---|---|
| Antenna | Ultra-wideband 500 MHz with DynaT target enhancement |
| Scanning depth | Up to 3 m (10 ft) |
| Scan modes | Line Scan, Grid Scan with in-field depth slices |
| Display | 21 cm (8 in) touch screen |
| Connectivity | Integrated GNSS, built-in Wi-Fi, USB |
| Data storage | 230 km (143 miles) of data |
| Power | 12 V sealed lead-acid gel battery, 9.0 Ah, 4-6 h, 110-240 V charger |
| Size | 115 x 55 x 90 cm |
| Weight | 19 kg (41 lb) with battery |
| Ingress protection | IP65 |
| Operating temperature | -20 to +50 °C |
| External GNSS | Optional (LMX-SG package) |
Standards
- FCCFCC 15.509
- ICIC RSS-220
- ETSIETSI EN 302 066
