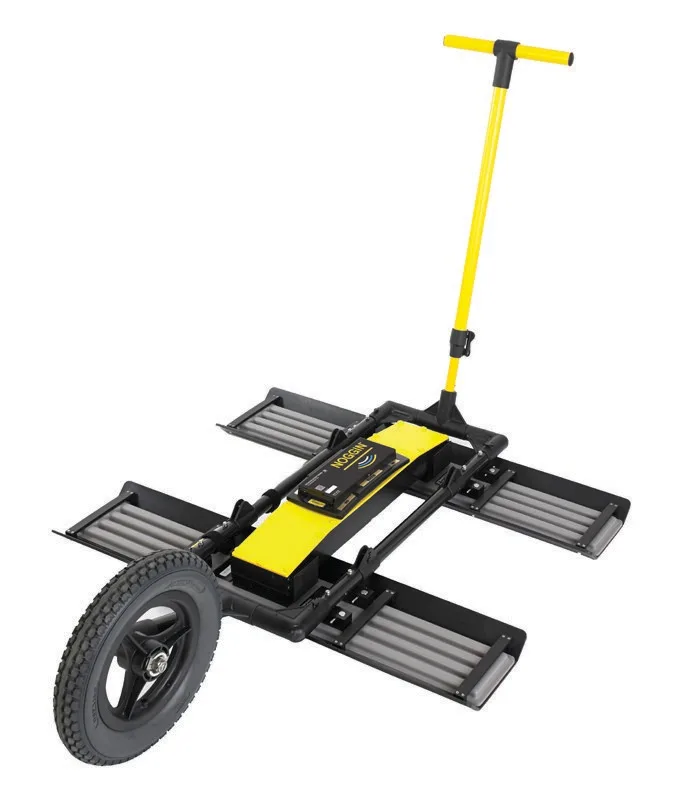

Utility Locating and DetectionNOGGIN Ultra 100 SmartTow GPR System
Part number
100-10-0316
A configurable ground penetrating radar with sensors from 100 MHz to 1000 MHz and five deployment configurations - SmartCart, SmartTow, SmartSled, SmartChariot and SmartHandle. It suits concrete and bridge decks, utility mapping, archaeology, geology and mining.
100-10-0316Ordering code
100 MHzCentre frequency
50-150 MHz-3 dB bandwidth
65Max. stacks
Specifications
| Ordering code | 100-10-0316 |
|---|---|
| Configuration | SmartTow (100-53-0129, includes deluxe DVL-500 harness, 2.5 m cable, belt battery and charger) |
| GPR sensor | NOGGIN Ultra 100 (100-22-0108) |
| Data logger | DVL-502N touch-screen digital video logger (100-22-0128) |
| Centre frequency | 100 MHz |
| -3 dB bandwidth | 50-150 MHz |
| Max. time window | 8000 ns @ 0.5 ns/pt |
| Max. depth setting | 200 m (656 ft) |
| Max. stacks | 65,536 |
| Data output | 32-bit |
| Sensor size | 91 x 76 x 17 cm |
| Sensor weight | 9.5 kg (21 lb) |
| Performance factor | 160 dB + 10 log10 stacks |
| Acquisition rate | 100,000 samples/s |
| Power | 8 W, 12 V @ 0.6 A DC |
| Operating temperature | Sensor -50 to +50 °C |
| Ingress protection | IP65 |
Standards
- FCC,FCC, ISED (Industry Canada) and ETSI regulations for ultra-wideband (UWB) devices
