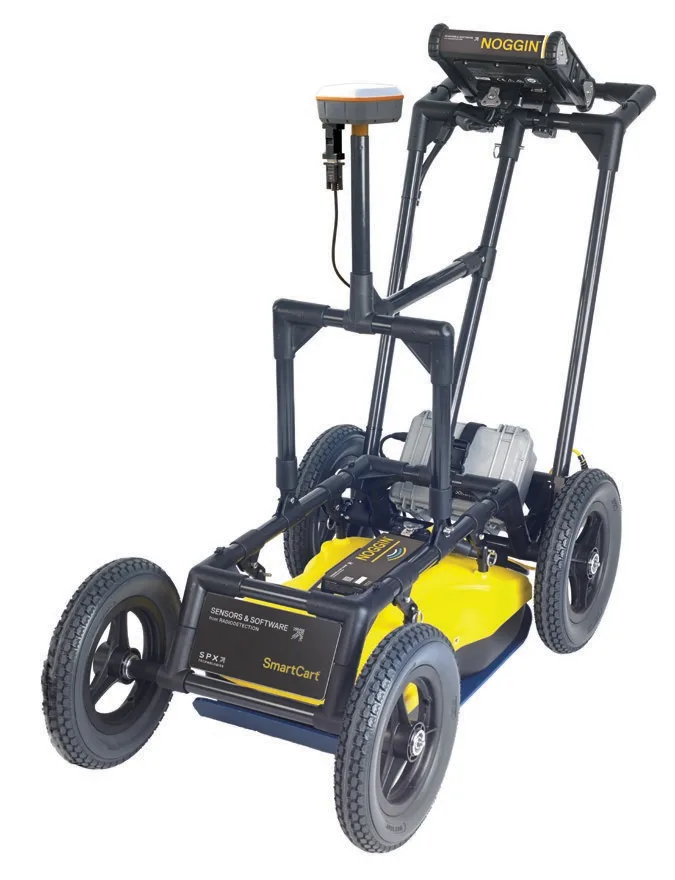

Utility Locating and DetectionNOGGIN 250 SmartCart GPR System
Part number
100-10-0306
A configurable ground penetrating radar with sensors from 100 MHz to 1000 MHz and five deployment configurations - SmartCart, SmartTow, SmartSled, SmartChariot and SmartHandle. It suits concrete and bridge decks, utility mapping, archaeology, geology and mining.
100-10-0306Ordering code
250 MHzCentre frequency
125-375 MHz-3 dB bandwidth
2048Max. stacks
Specifications
| Ordering code | 100-10-0306 |
|---|---|
| Configuration | SmartCart (100-53-0132, includes 1.75 m cable, SmartCart battery and charger (NOGGIN 100 types add 0.45 m odometer extension cable)) |
| GPR sensor | NOGGIN 250 (100-22-0061) |
| Data logger | DVL-502N touch-screen digital video logger (100-22-0128) |
| Centre frequency | 250 MHz |
| -3 dB bandwidth | 125-375 MHz |
| Max. time window | 2000 ns @ 0.4 ns/pt |
| Max. depth setting | 100 m (328 ft) |
| Max. stacks | 2048 |
| Data output | 16-bit |
| Sensor size | 63 x 41 x 23 cm |
| Performance factor | 160 dB + 10 log10 stacks |
| Acquisition rate | 100,000 samples/s |
| Power | 8 W, 12 V @ 0.6 A DC |
| Operating temperature | Sensor -50 to +50 °C |
| Ingress protection | IP65 |
Standards
- FCC,FCC, ISED (Industry Canada) and ETSI regulations for ultra-wideband (UWB) devices
