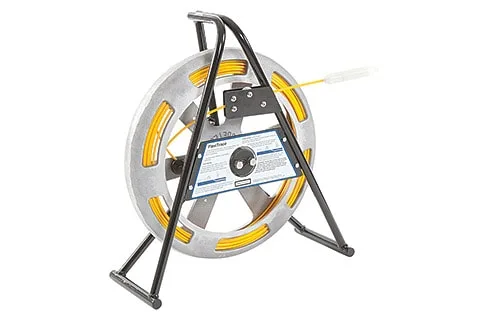

Utility Locating and DetectionFlexiTrace energised push rod 50 m (German label)
Part number
10/TRACE50-D
Glass-fibre push rods on steel frames with a manual brake, used to drive sondes along pipes, drains and ducts or to pull draw-strings. FlexiTrace is a conductive rod with a built-in sonde that a transmitter energises so its whole length can be traced from the surface.
6 kg (13 lb)Weight
12 mmMinimum pipe size
GermanUser guide label language
Specifications
| Rod diameter | 5 mm (0.2 in) |
|---|---|
| Rod length | 50 m (164 ft) |
| Weight | 6 kg (13 lb) |
| Minimum bend radius | 250 mm (10 in) |
| Rod connection | built-in sonde at tip |
| Signal source | Radiodetection transmitter or Genny (energises the rod) |
| Minimum pipe size | 12 mm |
| Frame size (L x W x H) | 440 x 190 x 490 mm |
| User guide label language | German |
